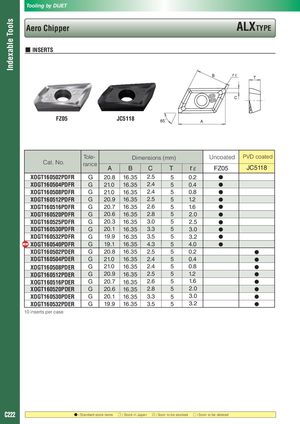

Indexable Tools Tooling by DIJET Aero Chipper ALXTYPE ■ INSERTS B rε T C FZ05 JC5118 65ﾟ A Tole- Dimensions (mm) Uncoated PVD coated Cat. No. rance A B C T rε FZ05 JC5118 XOGT160502PDFR G 20.8 16.35 2.5 5 0.2 ● XOGT160504PDFR G 21.0 16.35 2.4 5 0.4 ● XOGT160508PDFR G 21.0 16.35 2.4 5 0.8 ● XOGT160512PDFR G 20.9 16.35 2.5 5 1.2 ● XOGT160516PDFR G 20.7 16.35 2.6 5 1.6 ● XOGT160520PDFR G 20.6 16.35 2.8 5 2.0 ● XOGT160525PDFR G 20.3 16.35 3.0 5 2.5 ● XOGT160530PDFR G 20.1 16.35 3.3 5 3.0 ● XOGT160532PDFR G 19.9 16.35 3.5 5 3.2 ● XOGT160540PDFR G 19.1 16.35 4.3 5 4.0 ● XOGT160502PDER G 20.8 16.35 2.5 5 0.2 ● XOGT160504PDER G 21.0 16.35 2.4 5 0.4 ● XOGT160508PDER G 21.0 16.35 2.4 5 0.8 ● XOGT160512PDER G 20.9 16.35 2.5 5 1.2 ● XOGT160516PDER G 20.7 16.35 2.6 5 1.6 ● XOGT160520PDER G 20.6 16.35 2.8 5 2.0 ● XOGT160530PDER G 20.1 16.35 3.3 5 3.0 ● XOGT160532PDER G 19.9 16.35 3.5 5 3.2 ● 10 inserts per case C222 ● : Standard stock items □ : Stock in Japan ◎ : Soon to be stocked ○ : Soon to be deleted
