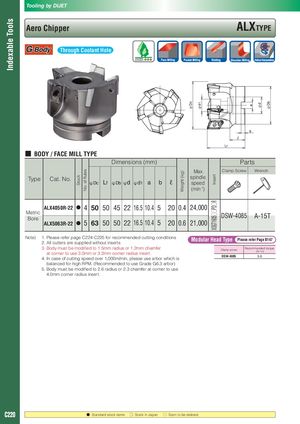

Tooling by DIJET Indexable Tools Aero Chipper ALXTYPE Through Coolant Hole φDb φDc φd1 φd a b ℓ Lf ■ BODY / FACE MILL TYPE Dimensions (mm) Parts Clamp Screw Wrench No. of flutes Max. Weight (kg) Insert Stock Type Cat. No. spindle ϕDc Lf ϕDb ϕd ϕd1 a b ℓ speed (min-1) XOGT1605○○PD○R ALX4050R-22 ● 4 50 50 45 22 16.5 10.4 5 20 0.4 24,000 Metric Bore DSW-4085 A-15T ALX5063R-22 ● 5 63 50 50 22 16.5 10.4 5 20 0.6 21,000 Note) 1. Please refer page C224-C225 for recommended cutting conditions 2. All cutters are supplied without inserts Modular Head Type Please refer Page B147 3. Body must be modified to 1.5mm radius or 1.2mm chamfer Clamp screw Recommended torque (N・m) at corner to use 3.0mm or 3.2mm corner radius insert. DSW-4085 3.6 4. In case of cutting speed over 1,000m/min, please use arbor which is balanced for high RPM. (Recommended to use Grade G6.3 arbor) 5. Body must be modified to 2.6 radius or 2.3 chamfer at corner to use 4.0mm corner radius insert. C220 ●: Standard stock items □: Stock in Japan ○: Soon to be deleted
