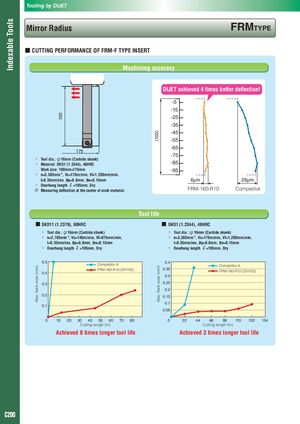

Indexable Tools Max. flank wear (mm) 10 0 (100)Max. flank wear (mm) Tooling by DIJET Mirror Radius FRMTYPE ■ CUTTING PERFORMANCE OF FRM-F TYPE INSERT Machining accuracy DIJET achieved 4 times better deflection! -5 -15 -25 -35 -45 -55 -65 175 -75 ◦ Tool dia.:φ16mm (Carbide shank) ◦ Material: DH31 (1.2344), 48HRC -85 Work size: 100mm×175mm -95 ◦ n=3,383min-1, Vc=170m/min, Vf=1,200mm/min, f=0.35mm/rev, ap=0.8mm, ae=0.15mm 6μm 26μm ◦ Overhung length ℓ=105mm, Dry※Measuring deflection at the center of work material. FRM-160-R10 Competitor Tool life ■ SKD11 (1.2379), 60HRC ■ DH31 (1.2344), 48HRC ◦ Tool dia.:φ16mm (Carbide shank) ◦ Tool dia.:φ16mm (Carbide shank) ◦ n=2,785min-1, Vc=140m/min, Vf=975mm/min, ◦ n=3,383min-1, Vc=170m/min, Vf=1,200mm/min, f=0.35mm/rev, ap=0.8mm, ae=0.15mm f=0.35mm/rev, ap=0.8mm, ae=0.15mm ◦ Overhung length ℓ=105mm, Dry ◦ Overhung length ℓ=105mm, Dry 0.5 Competitor A 0.4 Competitor A 0.4 FRM-160-R10 (DH102) 0.35 FRM-160-R10 (DH102) 0.3 0.3 0.25 0.2 0.2 0.15 0.1 0.1 0.05 0 10 20 30 40 50 60 70 80 0 22 44 66 88 110 132 154 Cutting length (m) Cutting length (m) Achieved 8 times longer tool life Achieved 3 times longer tool life C200
