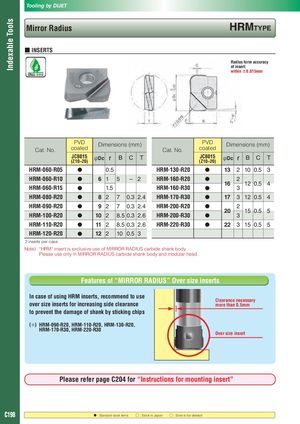

Indexable Tools Tooling by DIJET Mirror Radius HRMTYPE ■ INSERTS Radius form accuracy of insert: within ±0.015mm Cat. No. PVDcoated Dimensions (mm) Cat. No. PVDcoated Dimensions (mm) JC8015(Z10~20)φDcr B C T JC8015(Z10~20) φDc r B C T HRM-060-R05 ● 0.5 HRM-130-R20 ● 13 2 10 0.5 3 HRM-060-R10 ● 6 1 5 – 2 HRM-160-R20 ● 2 16 12 0.5 4 HRM-060-R15 ● 1.5 HRM-160-R30 ● 3 HRM-080-R20 ● 8 2 7 0.3 2.4 HRM-170-R30 ● 17 3 12 0.5 4 HRM-090-R20 ● 9 2 7 0.3 2.4 HRM-200-R20 ● 2 20 15 0.5 5 HRM-100-R20 ● 10 2 8.5 0.3 2.6 HRM-200-R30 ● 3 HRM-110-R20 ● 11 2 8.5 0.3 2.6 HRM-220-R30 ● 22 3 15 0.5 5 HRM-120-R20 ● 12 2 10 0.5 3 2 inserts per case Note) “HRM” insert is exclusive use of MIRROR RADIUS carbide shank body. Please use only in MIRROR RADIUS carbide shank body and modular head. Features of “MIRROR RADIUS” Over size inserts In case of using HRM inserts, recommend to use Clearance necessary over size inserts for increasing side clearance more than 0.5mm to prevent the damage of shank by sticking chips (※) HRM-090-R20, HRM-110-R20, HRM-130-R20, HRM-170-R30, HRM-220-R30 Over size insert Please refer page C204 for “Instructions for mounting insert” C198 : Standard stock items □ : Stock in Japan ○ : Soon to be deleted
