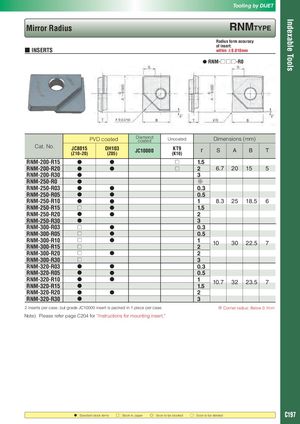

Indexable Tools Tooling by DIJET Mirror Radius RnMTyPE Radius form accuracy of insert: ■ INSERTS within ±0.010mm ● RNM-□□□-R0 PVD coated Diamondcoated Uncoated Dimensions (mm) Cat. No. JC8015(Z10~20) DH103(Z05) JC10000 KT9(K10) r S A B T RNM-200-R15 ● ● □ 1.5 RNM-200-R20 ● ● □ 2 6.7 20 15 5 RNM-200-R30 ● 3 RNM-250-R0 ● ※ RNM-250-R03 ● ● 0.3 RNM-250-R05 ● ● 0.5 RNM-250-R10 ● ● 1 8.3 25 18.5 6 RNM-250-R15 □ ● 1.5 RNM-250-R20 ● ● 2 RNM-250-R30 ● 3 RNM-300-R03 □ ● 0.3 RNM-300-R05 □ ● 0.5 RNM-300-R10 □ ●RNM-300-R15□ 12 10 30 22.5 7 RNM-300-R20 □ ● 2 RNM-300-R30 □ 3 RNM-320-R03 ● ● 0.3 RNM-320-R05 ● ● 0.5 RNM-320-R10 ● ●RNM-320-R15● 1 10.7 32 23.5 71.5 RNM-320-R20 ● ● 2 RNM-320-R30 ● 3 2 inserts per case, but grade JC10000 insert is packed in 1 piece per case. ※ Corner radius: Below 0.1mm Note) Please refer page C204 for “Instructions for mounting insert.” : Standard stock items □ : Stock in Japan ◎ : Soon to be stocked ○ : Soon to be deleted C197
