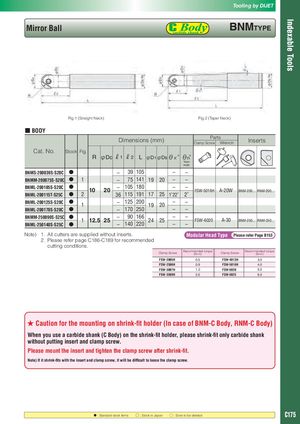

Tooling by DIJET Indexable Tools Mirror Ball BnMTyPE Fig.1 (Straight Neck) Fig.2 (Taper Neck) ■ BODY Parts Dimensions (mm) Clamp Screw Wrench Inserts Cat. No. Stock Fig. R φDc ℓ1 ℓ2 L φD1 φDs θκ°θn° Taper angle BNMS-200039S-S20C ● – 39 105 – – BNMM-200075S-S20C ● 1 – 75 141 19 20 – – BNML-200105S-S20C ● 105 180 – – 10 20 – FSW-5016H A-20W BNM-200... RNM-200... BNML-200115T-S25C ● 2 36 115 191 17 25 1˚22′ 2˚ BNML-200125S-S20C ● – 125 200 – – 1 19 20 BNML-200170S-S20C ● – 170 250 – – BNMM-250090S-S25C ● – 90 166 – – 1 12.5 25 24 25 FSW-6020 A-30 BNM-250... RNM-250... BNML-250140S-S25C ● – 140 220 – – Note) 1. All cutters are supplied without inserts. Modular Head Type Please refer Page B153 2. Please refer page C186-C189 for recommended cutting conditions. Recommended torque Recommended torque Clamp Screw （N・m） Clamp Screw （N・m） FSW-2005H 0.5 FSW-4013H 3.0 FSW-2506H 0.9 FSW-5016H 4.0 FSW-3007H 1.2 FSW-6020 5.0 FSW-3509H 2.0 FSW-8025 6.0 ★ Caution for the mounting on shrink-fit holder (In case of BNM-C Body, RNM-C Body) When you use a carbide shank (C Body) on the shrink-fit holder, please shrink-fit only carbide shank without putting insert and clamp screw. Please mount the insert and tighten the clamp screw after shrink-fit. Note) If it shrink-fits with the insert and clamp screw, it will be difficult to loose the clamp screw. : Standard stock items □ : Stock in Japan ○ : Soon to be deleted C175
