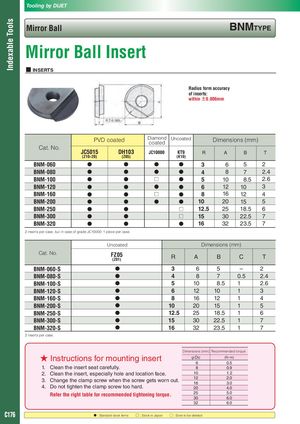

Indexable Tools Tooling by DIJET Mirror Ball BnMTyPE Mirror Ball Insert ■ InSERTS Radius form accuracy of inserts: within ±0.006mm PVD coated Diamond Uncoatedcoated Dimensions (mm) Cat. No. JC5015 DH103 JC10000 KT9 R A B T (Z10~20) (Z05) (K10) BNM-060 ● ● ● ● 3 6 5 2 BNM-080 ● ● ● ● 4 8 7 2.4 BNM-100 ● ● □ ● 5 10 8.5 2.6 BNM-120 ● ● ● ● 6 12 10 3 BNM-160 ● ● □ ● 8 16 12 4 BNM-200 ● ● ● ● 10 20 15 5 BNM-250 ● ● □ 12.5 25 18.5 6 BNM-300 ● ● □ 15 30 22.5 7 BNM-320 ● ● ● 16 32 23.5 7 2 inserts per case, but in case of grade JC10000: 1 piece per case. Uncoated Dimensions (mm) Cat. No. FZ05(Z01) R A B C T BNM-060-S ● 3 6 5 – 2 BNM-080-S ● 4 8 7 0.5 2.4 BNM-100-S ● 5 10 8.5 1 2.6 BNM-120-S ● 6 12 10 1 3 BNM-160-S ● 8 16 12 1 4 BNM-200-S ● 10 20 15 1 5 BNM-250-S ● 12.5 25 18.5 1 6 BNM-300-S ● 15 30 22.5 1 7 BNM-320-S ● 16 32 23.5 1 7 2 inserts per case. Dimensions (mm) Recommended torque ★ Instructions for mounting insert φDc (N・m) 6 0.5 1. Clean the insert seat carefully. 8 0.9 2. Clean the insert, especially hole and location face. 10 1.2 3. Change the clamp screw when the screw gets worn out. 1216 2.03.0 4. Do not tighten the clamp screw too hard. 20 4.0 Refer the right table for recommended tightening torque. 25 5.0 30 6.0 32 6.0 C176 : Standard stock items □ : Stock in Japan ○ : Soon to be deleted
