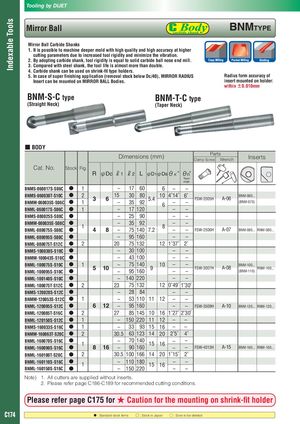

Tooling by DIJET Indexable Tools Mirror Ball BnMTyPE Mirror Ball Carbide Shanks 1. It is possible to machine deeper mold with high quality and high accuracy at higher cutting parameters due to increased tool rigidity and minimize the vibration. 2. By adopting carbide shank, tool rigidity is equal to solid carbide ball nose end mill. 3. Compared with steel shank, the tool life is almost more than double. 4. Carbide shank can be used on shrink-fit type holders. 5. In case of super finishing application (removal stock below Dc/40), MIRROR RADIUS Radius form accuracy of Insert can be mounted on MIRROR BALL Bodies. insert mounted on holder: within ±0.010mm BNM-S-C type BNM-T-C type (Straight Neck) (Taper Neck) ■ BODY Parts Dimensions (mm) Clamp Screw Wrench Inserts Cat. No. Stock Fig. R φDc ℓ1 ℓ2 L φD1φDs θκ°θn° Taper angle BNMS-060017S-S06C ● 1 – 17 60 6 – – BNMS-060030T-S10C ● 2 15 30 80 10 4˚14′ 6˚ BNM-060... 3 6 5.4 FSW-2005H A-06 ● 1 – 35 92 6 – – BNMM-060035S-S06C (BNM-070) BNML-060017S-S06C ● 1 – 17 120 – – BNMS-080025S-S08C ● – 25 90 – – BNMM-080035S-S08C ● – 35 92 – – 1 8 BNML-080075S-S08C ● 4 8 – 75 140 7.2 – – FSW-2506H A-07 BNM-080... RNM-080... BNML-080095S-S08C ● – 95 160 – – BNML-080075T-S12C ● 2 20 75 132 12 1˚37′ 2˚ BNMS-100030S-S10C ● – 30 100 – – BNMM-100043S-S10C ● – 43 100 – – BNML-100075S-S10C ● 1 – 75 140 10 – – BNM-100... 5 10 9 FSW-3007H A-08 ● RNM-100... BNML-100095S-S10C – 95 160 – – (BNM-110) BNML-100140S-S10C ● – 140 220 – – BNML-100075T-S12C ● 2 23 75 132 12 0˚49′1˚30′ BNMS-120028S-S12C ● – 28 84 – – BNMM-120053S-S12C ● 1 – 53 110 11 12 – – BNML-120095S-S12C ● 6 12 – 95 160 – – FSW-3509H A-10 BNM-120... RNM-120... BNML-120085T-S16C ● 2 27 85 145 10 16 1˚27′2˚30′ BNML-120150S-S12C ● 1 – 150 220 11 12 – – BNMS-160033S-S16C ● 1 – 33 93 15 16 – – BNMM-160063T-S20C ● 2 30.5 63 123 14 20 2˚5′ 4˚ BNML-160070S-S16C ● – 70 140 – – 1 15 16 BNML-160090S-S16C ● 8 16 – 90 160 – – FSW-4013H A-15 BNM-160... RNM-160... BNML-160100T-S20C ● 2 30.5 100 166 14 20 1˚15′ 2˚ BNML-160110S-S16C ● – 110 180 – – 1 15 16 BNML-160150S-S16C ● – 150 220 – – Note) 1. All cutters are supplied without inserts. 2. Please refer page C186-C189 for recommended cutting conditions. Please refer page C175 for ★ Caution for the mounting on shrink-fit holder C174 : Standard stock items □ : Stock in Japan ○ : Soon to be deleted
