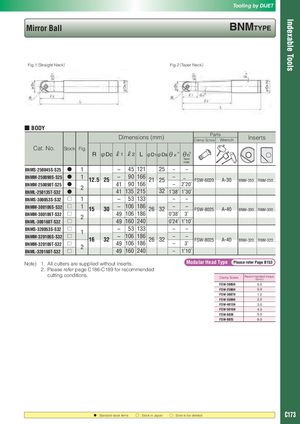

Tooling by DIJET Indexable Tools Mirror Ball BnMTyPE Fig.1（Straight Neck） Fig.2（Taper Neck） ■ BODY Parts Dimensions (mm) Clamp Screw Wrench Inserts Cat. No. Stock Fig. R φDc ℓ1 ℓ2 L φD1φDs θκ°θn° Taper angle BNMS-250045S-S25 ● 1 – 45 121 25 – – BNMM-250090S-S25 ● 1 – 90 166 – – 12.5 25 21 25 FSW-6020 A-30 BNM-250... RNM-250... BNMM-250090T-S25 ● 41 90 166 – 2˚20′ 2 BNML-250135T-S32 ● 41 135 215 32 1˚38′1˚30′ BNMS-300053S-S32 □ 1 – 53 133 – – BNMM-300106S-S32 □ 1 15 – 106 186 26 – – 30 32 FSW-8025 A-40 BNM-300... RNM-300... BNMM-300106T-S32 □ 49 106 186 0˚38′ 3˚ 2 BNML-300160T-S32 □ 49 160 240 0˚24′1˚10′ BNMS-320053S-S32 □ – 53 133 – – 1 BNMM-320106S-S32 □ – 106 186 – – 16 32 26 32 FSW-8025 A-40 BNM-320... RNM-320... BNMM-320106T-S32 □ 49 106 186 – 3˚ 2 BNML-320160T-S32 □ 49 160 240 – 1˚10′ Note) 1. All cutters are supplied without inserts. Modular Head Type Please refer Page B153 2. Please refer page C186-C189 for recommended cutting conditions. Recommended torque （N・m） Clamp Screw FSW-2005H 0.5 FSW-2506H 0.9 FSW-3007H 1.2 FSW-3509H 2.0 FSW-4013H 3.0 FSW-5016H 4.0 FSW-6020 5.0 FSW-8025 6.0 : Standard stock items □ : Stock in Japan ○ : Soon to be deleted C173
