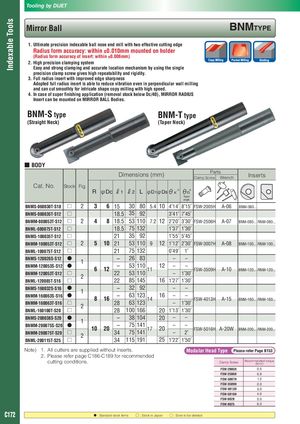

Tooling by DIJET Indexable Tools Mirror Ball BnMTyPE 1. Ultimate precision indexable ball nose end mill with two effective cutting edge Radius form accuracy: within ±0.010mm mounted on holder (Radius form accuracy of insert: within ±0.006mm) 2. High precision clamping system Easy and strong clamping and accurate location mechanism by using the single precision clamp screw gives high repeatability and rigidity. 3. Full radius insert with improved edge sharpness Adopted full radius insert is able to reduce vibration even in perpendicular wall milling and can cut smoothly for intricate shape copy milling with high speed. 4. In case of super finishing application (removal stock below Dc/40), MIRROR RADIUS Insert can be mounted on MIRROR BALL Bodies. BNM-S type BNM-T type (Straight Neck) (Taper Neck) ■ BODY Parts Dimensions (mm) Clamp Screw Wrench Inserts Cat. No. Stock Fig. R φDc ℓ1 ℓ2 L φD1φDs θκ°θn° Taper angle BNMS-060030T-S10 □ 2 3 6 15 30 80 5.4 10 4˚14′8˚15′FSW-2005H A-06 BNM-060... BNMS-080035T-S12 □ 18.5 35 92 3˚41′7˚45′ BNMM-080053T-S12 □ 2 4 8 18.5 53 110 7.2 12 2˚20′3˚30′FSW-2506H A-07 BNM-080... RNM-080... BNML-080075T-S12 □ 18.5 75 132 1˚37′1˚30′ BNMS-100035T-S12 □ 21 35 92 1˚55′5˚45′ BNMM-100053T-S12 □ 2 5 10 21 53 110 9 12 1˚12′2˚30′FSW-3007H A-08 BNM-100... RNM-100... BNML-100075T-S12 □ 21 75 132 0˚49′ 1˚ BNMS-120026S-S12 ● – 26 83 – – 1 BNMM-120053S-S12 ● – 53 110 12 – – 6 12 11 FSW-3509H A-10 BNM-120... RNM-120... BNMM-120053T-S12 □ 22 53 110 – 1˚30′ 2 BNML-120085T-S16 □ 22 85 145 16 1˚27′1˚30′ BNMS-160032S-S16 ● – 32 92 – – 1 BNMM-160063S-S16 ● – 63 123 16 – – 8 16 14 FSW-4013H A-15 BNM-160... RNM-160... BNMM-160063T-S16 □ 28 63 123 – 1˚30′ 2 BNML-160100T-S20 □ 28 100 166 20 1˚13′1˚30′ BNMS-200038S-S20 ● – 38 104 20 – – 1 BNMM-200075S-S20 ● – 75 141 – – 10 20 17 20 FSW-5016H A-20W BNM-200... RNM-200... BNMM-200075T-S20 □ 34 75 141 – 2˚ 2 BNML-200115T-S25 □ 34 115 191 25 1˚22′1˚50′ Note) 1. All cutters are supplied without inserts. Modular Head Type Please refer Page B153 2. Please refer page C186-C189 for recommended cutting conditions. Clamp Screw Recommended torque （N・m） FSW-2005H 0.5 FSW-2506H 0.9 FSW-3007H 1.2 FSW-3509H 2.0 FSW-4013H 3.0 FSW-5016H 4.0 FSW-6020 5.0 FSW-8025 6.0 C172 : Standard stock items □ : Stock in Japan ○ : Soon to be deleted
