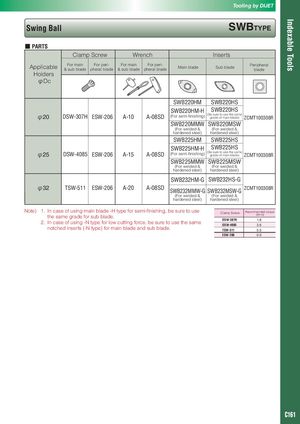

Tooling by DIJET Indexable Tools Swing Ball SWBTyPE ■ PARTS Clamp Screw Wrench Inserts For main For peri- For main For peri- Peripheral Applicable & sub blade pheral blade & sub blade pheral blade Main blade Sub blade blade Holders φDc SWB220HM SWB220HS SWB220HM-H (BeSWB220HS φ20 sure to use the same DSW-307H ESW-206 A-10 A-08SD (For semi-finishing) grade of main blade) ZCMT100308R SWB220MMW SWB220MSW (For welded & (For welded & hardened steel) hardened steel) SWB225HM SWB225HS SWB225HM-H (BeSWB225HS φ25 sure to use the same DSW-4085 ESW-206 A-15 A-08SD (For semi-finishing) grade of main blade) ZCMT100308R SWB225MMW SWB225MSW (For welded & (For welded & hardened steel) hardened steel) SWB232HM-G SWB232HS-G φ32 TSW-511 ESW-206 A-20 A-08SD ZCMT100308R SWB232MMW-G SWB232MSW-G (For welded & (For welded & hardened steel) hardened steel) Note) 1. In case of using main blade -H type for semi-finishing, be sure to use Clamp Screw Recommended torque (N・m) the same grade for sub blade. DSW-307H 1.8 2. In case of using -N type for low cutting force, be sure to use the same DSW-4085 3.6 notched inserts (-N type) for main blade and sub blade. TSW-511 5.5 ESW-206 0.9 C161
