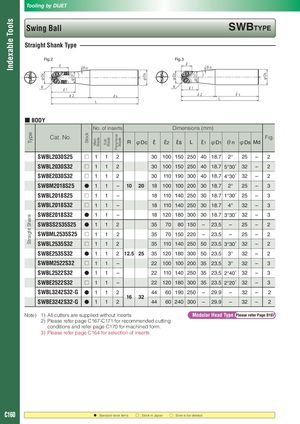

Indexable Tools TypeStraight Shank φDc φD1 Stock Main Blade Sub Blade Peripheral Blade φDs φDc φD1 φDs Tooling by DIJET Swing Ball SWBTyPE Straight Shank Type Fig.2 Fig.3 ℓ θn ℓ θn R ℓ1 R ℓ1 ℓ2 ℓs ℓ2 ℓsL L ■ BODY No. of inserts Dimensions (mm) Cat. No. Fig. R φDc ℓ ℓ2 ℓs L ℓ1 φD1 θn φDs Md SWBL2030S25 □ 1 1 2 30 100 150 250 40 18.7 2° 25 – 2 SWBL2030S32 □ 1 1 2 30 100 150 250 40 18.7 5°30′ 32 – 2 SWBE2030S32 □ 1 1 2 30 110 190 300 40 18.7 4°30′ 32 – 2 SWBM2018S25 ● 1 1 – 10 20 18 100 100 200 30 18.7 2° 25 – 3 SWBL2018S25 □ 1 1 – 18 110 140 250 30 18.7 1°30′ 25 – 3 SWBL2018S32 □ 1 1 – 18 110 140 250 30 18.7 4° 32 – 3 SWBE2018S32 ● 1 1 – 18 120 180 300 30 18.7 3°30′ 32 – 3 SWBSS2535S25 ● 1 1 2 35 70 80 150 – 23.5 – 25 – 2 SWBML2535S25 □ 1 1 2 35 70 150 220 – 23.5 – 25 – 2 SWBL2535S32 □ 1 1 2 35 110 140 250 50 23.5 3°30′ 32 – 2 SWBE2535S32 ● 1 1 2 12.5 25 35 120 180 300 50 23.5 3° 32 – 2 SWBM2522S32 □ 1 1 – 22 100 100 200 35 23.5 3° 32 – 3 SWBL2522S32 ● 1 1 – 22 110 140 250 35 23.5 2°40′ 32 – 3 SWBE2522S32 □ 1 1 – 22 120 180 300 35 23.5 2°20′ 32 – 3 SWBL3242S32-G ● 1 1 2 44 60 190 250 – 29.9 – 32 – 2 16 32 SWBE3242S32-G ● 1 1 2 44 60 240 300 – 29.9 – 32 – 2 Note) 1) All cutters are supplied without inserts Modular Head Type Please refer Page B107 2) Please refer page C167-C171 for recommended cutting conditions and refer page C170 for machined form. 3) Please refer page C164 for selection of inserts. C160 : Standard stock items □ : Stock in Japan ○ : Soon to be deleted
