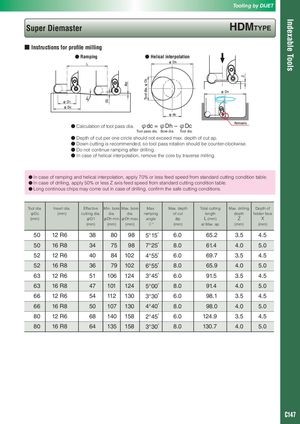

Общий каталог Dijet 2018 - страница 359

Indexable Tools Tooling by DIJET Super Diemaster HDMTyPE ■ Instructions for profile milling ● Ramping ● Helical interpolation ● Calculation of tool pass dia. φdc = φDh – φDc Tool pass dia. Bore dia. Tool dia. ● Depth of cut per one circle should not exceed max. depth of cut ap. ● Down cutting is recommended, so tool pass rotation should be counter-clockwise. ● Do not continue ramping after drilling. ● In case of helical interpolation, remove the core by traverse milling. ● In case of ramping and helical interpolation, apply 70% or less feed speed from standard cutting condition table. ● In case of drilling, apply 50% or less Z axis feed speed from standard cutting condition table. ● Long continous chips may come out in case of drilling, confirm the safe cutting conditions. Tool dia. Insert dia. Effective Min. bore Max. bore Max. Max. depth Total cutting Max. drilling Depth of φDc (mm) cutting dia. dia. dia. ramping of cut length depth holder face (mm) φD1 φDh min. φDh max. angle ap L (mm) Z X (mm) (mm) (mm) θ° (mm) at Max. ap (mm) (mm) 50 12 R6 38 80 98 5°15′ 6.0 65.2 3.5 4.5 50 16 R8 34 75 98 7°25′ 8.0 61.4 4.0 5.0 52 12 R6 40 84 102 4°55′ 6.0 69.7 3.5 4.5 52 16 R8 36 79 102 6°55′ 8.0 65.9 4.0 5.0 63 12 R6 51 106 124 3°45′ 6.0 91.5 3.5 4.5 63 16 R8 47 101 124 5°00′ 8.0 91.4 4.0 5.0 66 12 R6 54 112 130 3°30′ 6.0 98.1 3.5 4.5 66 16 R8 50 107 130 4°40′ 8.0 98.0 4.0 5.0 80 12 R6 68 140 158 2°45′ 6.0 124.9 3.5 4.5 80 16 R8 64 135 158 3°30′ 8.0 130.7 4.0 5.0 C147
