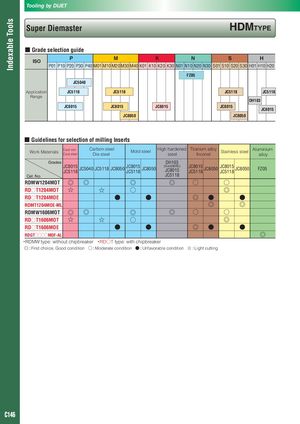

Indexable Tools Tooling by DIJET Super Diemaster HDMTyPE ■ Grade selection guide ISO P M K n S H P01 P10 P20 P30 P40 M01 M10 M20 M30 M40 K01 K10 K20 K30 N01 N10 N20 N30 S01 S10 S20 S30 H01 H10 H20 FZ05 JC5040 Application JC5118 JC5118 JC5118 JC5118 Range DH103 JC8015 JC8015 JC8015 JC8015 JC8015 JC8050 JC8050 ■ Guidelines for selection of milling Inserts Work Materials Cast ironCast steelCarbon steelDie steelMold steel High hardenedsteel Titanium alloyInconelStainless steel Aluminiumalloy Grades DH103 Cat. No. JC8015 JC5118 JC5040 JC5118 JC8050 JC8015 JC5118 JC8050 (Over50HRC)JC8015JC5118JC8015 JC5118 JC8050 JC8015 JC5118 JC8050FZ05 RDMW1204MOT ◎ ◎ ◎ ◎ ○ ○ RD○T1204MOT ☆ ☆ ○ ◎ RD○T1204MOE ● ● ◎ ● ● RDMT1204MOE-ML ◎ ◎ RDMW1606MOT ◎ ◎ ◎ ◎ ○ ○ RD○T1606MOT ☆ ☆ ○ ◎ RD○T1606MOE ● ● ◎ ● ● RDGT○○○○MOF-AL ◎ ・RDMW type: without chipbreaker ・RD○T type: with chipbreaker ◎ : First choice, Good condition ○ : Moderate condition ● : Unfavorable condition ☆ : Light cutting C146
