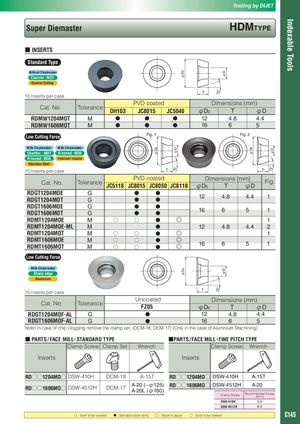

Общий каталог Dijet 2018 - страница 357

Tooling by DIJET Indexable Tools Super Diemaster HDMTyPE ■ INSERTS Standard Type φDc φD Without Chipbreaker Chamfer -MOT General Cutting 15° T 10 Inserts per case PVD coated Dimensions (mm) Cat. No. Tolerance DH103 JC8015 JC5040 φDc T φD RDMW1204MOT M ● ● ● 12 4.8 4.4 RDMW1606MOT M ● ● ● 16 6 5 Fig. 1 Fig. 2 Low Cutting Force With Chipbreaker With Chipbreaker φDc φDc φD φD Chamfer -MOT R-honed -MOE R-honed -MOE Titanium・Inconel Stainless Steel 15° 15° T T 10 Inserts per case PVD coated Dimensions (mm) Cat. No. Tolerance Fig. JC5118 JC8015 JC8050 JC8118 φDc T φD RDGT1204MOE G ● ● ● ● 12 4.8 4.4 1 RDGT1204MOT G RDGT1606MOE G ● ● 16 6 5 1 RDGT1606MOT G ● ● RDMT1204MOE M ○ ○ ● ◎ 1 RDMT1204MOE-ML M ● 12 4.8 4.4 2 RDMT1204MOT M ○ ○ ● ◎ 1 RDMT1606MOE M ○ ○ ● ◎ 16 6 5 1 RDMT1606MOT M ○ ○ ● ◎ Low Cutting Force With Chipbreaker φDc φD Sharp edge Aluminium 15° T 10 Inserts per case Uncoated Dimensions (mm) Cat. No. Tolerance FZ05 φDc T φD RDGT1204MOF-AL G ● 12 4.8 4.4 RDGT1606MOF-AL G ● 16 6 5 Note) In case of chip clogging remove the clamp set. (DCM-18, DCM-17) (Only in the case of Aluminium Machining) ■ PARTS / FACE MILL・STANDARD TYPE ■PARTS / FACE MILL・FINE PITCH TYPE Clamp Screw Clamp Set Wrench Clamp Screw Wrench Inserts Inserts RD○○1204MO○ DSW-410H DCM-18 A-15T RD○○1204MO○ DSW-410H A-15T A-20 (~φ125) RD○○1606MO○ DSW-4512H A-20 RD○○1606MO○ DSW-4512H DCM-17 A-20L (φ160) Clamp Screw Recommended Torque (N・m) DSW-410H 3.6 DSW-4512H 6.0 ◎ : Soon to be stocked : Standard stock items □ : Stock in Japan ○ : Soon to be deleted C145
