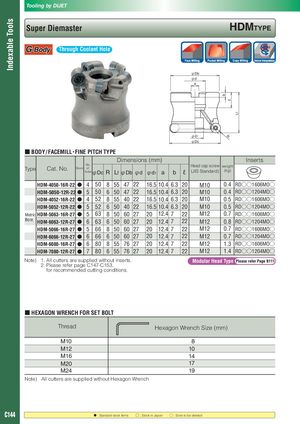

Indexable Tools b ℓ Lf Tooling by DIJET Super Diemaster HDMTyPE Through Coolant Hole φDb φd a φd1 R φDc ■ BODY / FACEMILL・FINE PITCH TYPE Dimensions (mm) Inserts Type No.Cat. No.Stockofflutes φDcRLf φDb φdφd1a Head cap screw weightbℓ(JIS Standard)(kg) HDM-4050-16R-22 ● 4 50 8 55 47 22 16.5 10.4 6.3 20 M10 0.4 RD○○1606MO○ HDM-5050-12R-22 ● 5 50 6 50 47 22 16.5 10.4 6.3 20 M10 0.4 RD○○1204MO○ HDM-4052-16R-22 ● 4 52 8 55 40 22 16.5 10.4 6.3 20 M10 0.5 RD○○1606MO○ HDM-5052-12R-22 ● 5 52 6 50 40 22 16.5 10.4 6.3 20 M10 0.5 RD○○1204MO○ Metric HDM-5063-16R-27 ● 5 63 8 50 60 27 20 12.4 7 22 M12 0.7 RD○○1606MO○ Bore HDM-6063-12R-27 ● 6 63 6 50 60 27 20 12.4 7 22 M12 0.8 RD○○1204MO○ HDM-5066-16R-27 ● 5 66 8 50 60 27 20 12.4 7 22 M12 0.7 RD○○1606MO○ HDM-6066-12R-27 ● 6 66 6 50 60 27 20 12.4 7 22 M12 0.7 RD○○1204MO○ HDM-6080-16R-27 ● 6 80 8 55 76 27 20 12.4 7 22 M12 1.3 RD○○1606MO○ HDM-7080-12R-27 ● 7 80 6 55 76 27 20 12.4 7 22 M12 1.4 RD○○1204MO○ Note) 1. All cutters are supplied without inserts. Modular Head Type Please refer Page B111 2. Please refer page C147-C153, for recommended cutting conditions. ■ HEXAGON WRENCH FOR SET BOLT Thread Hexagon Wrench Size (mm) M10 8 M12 10 M16 14 M20 17 M24 19 Note) All cutters are supplied without Hexagon Wrench C144 : Standard stock items □ : Stock in Japan ○ : Soon to be deleted
