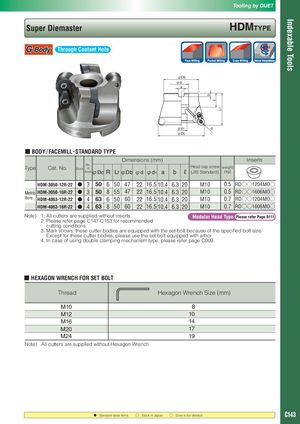

R Indexable Tools b ℓ Lf Tooling by DIJET Super Diemaster HDMTyPE Through Coolant Hole φDb φd a φd1 φDc ■ BODY / FACEMILL・STANDARD TYPE Dimensions (mm) Inserts No.TypeCat. No.Stockof Head cap screw weight flutes φDc R Lf φDb φd φd1 a b ℓ (JIS Standard) (kg) HDM-3050-12R-22 ● 3 50 6 50 47 22 16.5 10.4 6.3 20 M10 0.5 RD○○1204MO○ Metric HDM-3050-16R-22 ● 3 50 8 55 47 22 16.5 10.4 6.3 20 M10 0.5 RD○○1606MO○ Bore HDM-4063-12R-22 ● 4 63 6 50 60 22 16.5 10.4 6.3 20 M10 0.7 RD○○1204MO○ HDM-4063-16R-22 ● 4 63 8 50 60 22 16.5 10.4 6.3 20 M10 0.7 RD○○1606MO○ Note) 1. All cutters are supplied without inserts. Modular Head Type Please refer Page B111 2. Please refer page C147-C153 for recommended cutting conditions. 3. Mark shows: these cutter bodies are equipped with the set bolt because of the specified bolt size. Except for these cutter bodies, please use the set bolt equipped with arbor. 4. In case of using double clamping mechanism type, please refer page C009. ■ HEXAGON WRENCH FOR SET BOLT Thread Hexagon Wrench Size (mm) M10 8 M12 10 M16 14 M20 17 M24 19 Note) All cutters are supplied without Hexagon Wrench : Standard stock items □ : Stock in Japan ○ : Soon to be deleted C143
