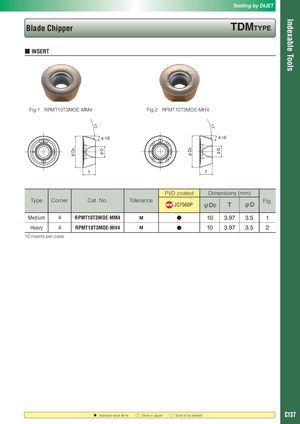

11ﾟ 11ﾟ Indexable Tools φDc φD φDc φD Tooling by DIJET Blade Chipper TDMTyPE ■ INSERT Fig.1 RPMT10T3MOE-MM4 Fig.2 RPMT10T3MOE-MH4 4-18ﾟ 4-18ﾟ T T PVD coated Dimensions (mm) Type Corner Cat. No. Tolerance JC7560P φDc T φD Fig. Medium 4 RPMT10T3MOE-MM4 M ● 10 3.97 3.5 1 Heavy 4 RPMT10T3MOE-MH4 M ● 10 3.97 3.5 2 10 inserts per case : Standard stock items □ : Stock in Japan ○ : Soon to be deleted C137
