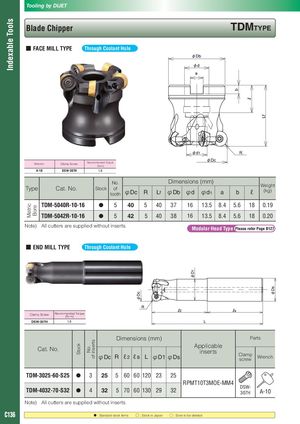

Tooling by DIJET Indexable Tools Blade Chipper TDMTyPE ■ FACE MILL TYPE Through Coolant Hole Recommended Torque Wrench Clamp Screw (N·m) A-10 DSW-307H 1.8 No. Dimensions (mm) Weight Type Cat. No. Stock of tooth φDc R Lf φDb φd φd1 a b ℓ (kg) TDM-5040R-10-16 ● 5 40 5 40 37 16 13.5 8.4 5.6 18 0.19 Metric Bore TDM-5042R-10-16 ● 5 42 5 40 38 16 13.5 8.4 5.6 18 0.20 Note) All cutters are supplied without inserts. Modular Head Type Please refer Page B127 ■ END MILL TYPE Through Coolant Hole Clamp Screw Recommended Torque (N · m) DSW-307H 1.8 Dimensions (mm) Parts of inserts Stock Applicable No. Cat. No. inserts Clamp φDc R ℓ 2 ℓ s L φD1 φDs screw Wrench TDM-3025-60-S25 ● 3 25 5 60 60 120 23 25 RPMT10T3MOE-MM4 DSW- TDM-4032-70-S32 ● 4 32 5 70 60 130 29 32 A-10 307H Note) All cutters are supplied without inserts. C136 : Standard stock items □ : Stock in Japan ○ : Soon to be deleted
