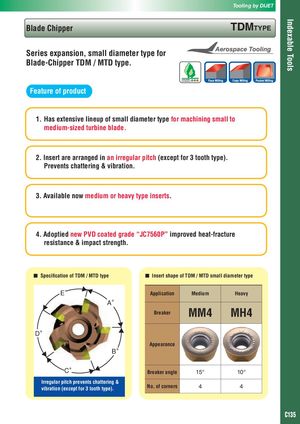

▼ ▼ Indexable Tools Tooling by DIJET Blade Chipper TDMTyPE Series expansion, small diameter type for Blade-Chipper TDM / MTD type. Feature of product 1. Has extensive lineup of small diameter type for machining small to medium-sized turbine blade. 2. Insert are arranged in an irregular pitch (except for 3 tooth type). Prevents chattering & vibration. 3. Available now medium or heavy type inserts. 4. Adoptied new PVD coated grade “JC7560P” improved heat-fracture resistance & impact strength. ■ Specification of TDM / MTD type ■ Insert shape of TDM / MTD small diameter type E° Application Medium Heavy ▼ A° Breaker MM4 MH4 ▼ D° Appearance ▼ B° C° Breaker angle 15° 10° Irregular pitch prevents chattering & vibration (except for 3 tooth type). No. of corners 4 4 C135 ▼▼ ▼ ▼
