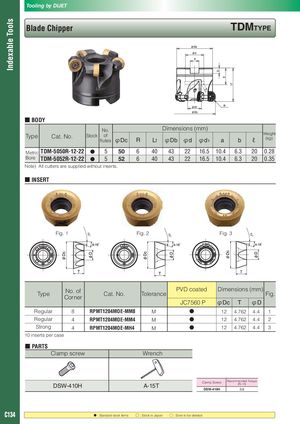

Tooling by DIJET Indexable Tools Blade Chipper TDMTYPE ■ BODY No. Dimensions (mm) Weight Type Cat. No. Stock of flutes φDc R Lf φDb φd φd1 a b ℓ (kg) Metric TDM-5050R-12-22 ● 5 50 6 40 43 22 16.5 10.4 6.3 20 0.28 Bore TDM-5052R-12-22 ● 5 52 6 40 43 22 16.5 10.4 6.3 20 0.35 Note) All cutters are supplied without inserts. ■ INSERT Fig. 1 Fig. 2 Fig. 3 No. of PVD coated Dimensions (mm) Type Cat. No. Tolerance Fig. Corner JC7560 P φDc T φD Regular 8 RPMT1204MOE-MM8 M 12 4.762 4.4 1 Regular 4 RPMT1204MOE-MM4 M 12 4.762 4.4 2 Strong 4 RPMT1204MOE-MH4 M 12 4.762 4.4 3 10 inserts per case ■ PARTS Clamp screw Wrench Clamp Screw Recommended Torque (N · m) DSW-410H A-15T DSW-410H 3.6 C134 : Standard stock items □ : Stock in Japan ○ : Soon to be deleted
