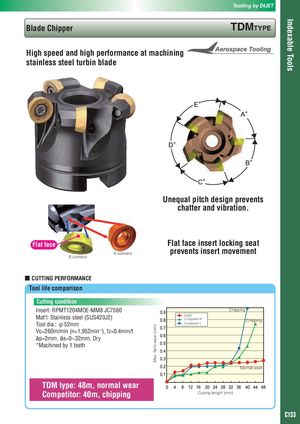

Indexable Tools Tooling by DIJET Blade Chipper TDMTyPE High speed and high performance at machining stainless steel turbin blade Unequal pitch design prevents chatter and vibration. Flat face Flat face insert locking seat 4 corners prevents insert movement 8 corners ■ CUTTING PERFORMANCE Tool life comparison Cutting condition Insert: RPMT1204MOE-MM8 JC7560 Chipping Mat‘l: Stainless steel (SUS420J2) DIJETCompetitor H Chipping Tool dia.: φ52mm Competitor I Vc=260m/min (n=1,952min-1), fz=0.4mm/t ap=2mm, ae=0~32mm, Dry *Machined by 1 teeth Normal wear TDM type: 48m, normal wear Competitor: 40m, chipping Cutting length (mm) C133 Max. flank wear (mm)
