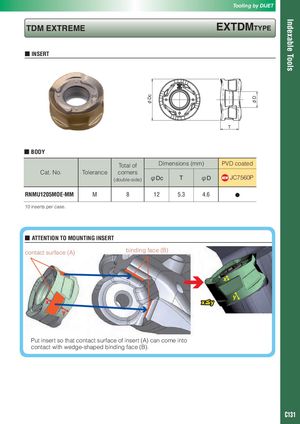

Общий каталог Dijet 2018 - страница 343

Indexable Tools φDc φD Tooling by DIJET TDM EXTREME EXTDMTyPE ■ INSERT T ■ BODY Total of Dimensions (mm) PVD coated Cat. No. Tolerance corners (double-side) φDc T φD JC7560P RNMU1205MOE-MM M 8 12 5.3 4.6 ● 10 inserts per case. ■ ATTENTION TO MOUNTING INSERT contact surface (A) binding face (B) x y x y Put insert so that contact surface of insert (A) can come into contact with wedge-shaped binding face (B). C131
