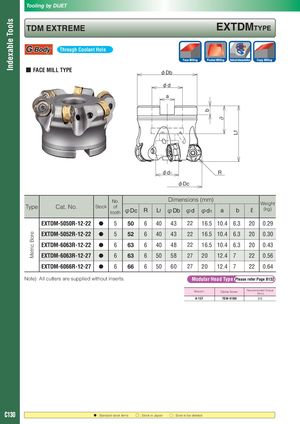

Tooling by DIJET Indexable Tools TDM EXTREME EXTDMTyPE Through Coolant Hole ■ FACE MILL TYPE φDb φd a b ∂ Lf φd1 R φDc No. Dimensions (mm) Weight Type Cat. No. Stock of tooth φDc R Lf φDb φd φd1 a b ℓ (kg) EXTDM-5050R-12-22 ● 5 50 6 40 43 22 16.5 10.4 6.3 20 0.29 ● 5 6 40 43 16.5 10.4 6.3 20 0.30 Metric Bore EXTDM-5052R-12-22 52 22 EXTDM-6063R-12-22 ● 6 63 6 40 48 22 16.5 10.4 6.3 20 0.43 EXTDM-6063R-12-27 ● 6 63 6 50 58 27 20 12.4 7 22 0.56 EXTDM-6066R-12-27 ● 6 66 6 50 60 27 20 12.4 7 22 0.64 Note) All cutters are supplied without inserts. Modular Head Type Please refer Page B132 Recommended Torque Wrench Clamp Screw (N·m) A-15T TSW-410H 3.5 C130 : Standard stock items □ : Stock in Japan ○ : Soon to be deleted
