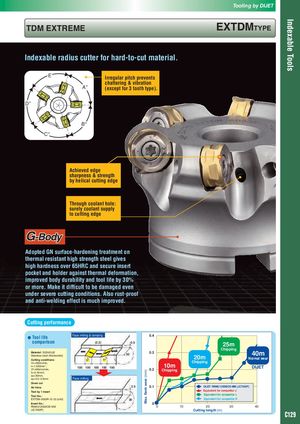

Tooling by DIJET Indexable Tools TDM EXTREME EXTDMTyPE Indexable radius cutter for hard-to-cut material. ▼ ▼ E° Irregular pitch prevents ▼ chattering & vibration ▼ A° (except for 3 tooth type). D° ▼ ▼ ▼ ▼ B° C° ▼ ▼ Achieved edge sharpness & strength by helical cutting edge Through coolant hole: surely coolant supply to cutting edge Adopted GN surface-hardening treatment on thermal resistant high strength steel gives high hardness over 65HRC and secure insert pocket and holder against thermal deformation, improved body durability and tool life by 30% or more. Make it difficult to be damaged even under severe cutting conditions. Also rust-proof and anti-welding effect is much improved. Cutting performance 0.4 ● Tool life Face milling & ramping comparison (2.2) 0.5 ◆ 25m Chipping Material: SUS420J2 30 0.3 ▲ 40m Stainless steel (Martensitic) Cutting conditions: 1° 1° 20m ■ Normal wear Vc=260m/min, Chipping ● n=1,650min-1, 100 100 100 100 100 10m DIJET Vf=495mm/min, 0.2 Chipping Max. flank wear (mm) fz=0.3mm/t, ■ ▲ ae=30mm, ■ ◆ ap=0.5–2.5mm Face milling ■ ● ● ● ● ■ Down cut ◆ Air blow 2.5 0.1 ● ● DIJET: RNMU1205MOE-MM (JC7560P) Test by 1 insert ◆ ● ▲ Equivalent for competitor J Tool no.: ■ Equivalent for competitor L EXTDM-5050R-12-22 (ø50) 30 ◆ Equivalent for competitor R Insert no.: 0▲ ● RNMU1205MOE-MM 0 10 20 30 40 (JC7560P) Cutting length (m) C129
