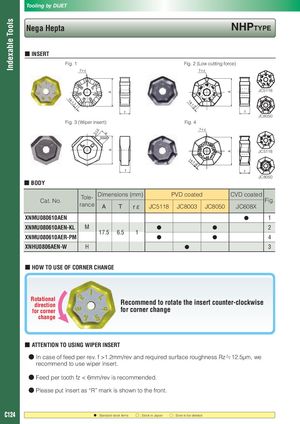

Tooling by DIJET Indexable Tools Nega Hepta nHPTyPE ■ INSERT Fig. 1 Fig. 2 (Low cutting force) 7-rε 7-rε JC5118 A A 14 14 -1 .2 -1 .2 T T JC8050 Fig. 3 (Wiper insert) Fig. 4 7-rε ε 2-r 6 R500 A JC5118 A 14 -1 .2 T T JC8050 ■ BODY Dimensions (mm) PVD coated CVD coated Tole- Fig. Cat. No. rance A T rε JC5118 JC8003 JC8050 JC608X XNMU080610AEN ● 1 XNMU080610AEN-KL M ● ● 2 17.5 6.5 1 XNMU080610AER-PM ● ● 4 XNHU0806AEN-W H ● 3 ■ HOW TO USE OF CORNER CHANGE Rotational direction Recommend to rotate the insert counter-clockwise for corner for corner change change ■ ATTENTION TO USING WIPER INSERT ● In case of feed per rev. f >1.2mm/rev and required surface roughness Rz≒12.5μm, we recommend to use wiper insert. ● Feed per tooth fz < 6mm/rev is recommended. ● Please put insert as “R” mark is shown to the front. C124 : Standard stock items □ : Stock in Japan ○ : Soon to be deleted
