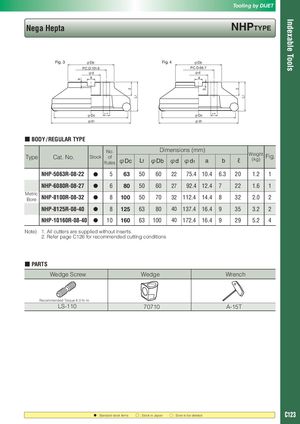

Tooling by DIJET Indexable Tools Nega Hepta nHPTyPE Fig. 3 φDb Fig. 4 φDb P.C.D.101.6 P.C.D.66.7 φd φd b a a ℓ ℓ b Lf Lf φ17 φ14 φDc φDc φd1 φd1 ■ BODY / REGULAR TYPE No. Dimensions (mm) Weight Type Cat. No. Stock of Fig. flutes φDc Lf φDb φd φd1 a b ℓ (kg) NHP-5063R-08-22 ● 5 63 50 60 22 75.4 10.4 6.3 20 1.2 1 NHP-6080R-08-27 ● 6 80 50 60 27 92.4 12.4 7 22 1.6 1 Metric Bore NHP-8100R-08-32 ● 8 100 50 70 32 112.4 14.4 8 32 2.0 2 NHP-8125R-08-40 ● 8 125 63 80 40 137.4 16.4 9 35 3.2 2 NHP-10160R-08-40 ● 10 160 63 100 40 172.4 16.4 9 29 5.2 4 Note) 1. All cutters are supplied without inserts. 2. Refer page C126 for recommended cutting conditions ■ PARTS Wedge Screw Wedge Wrench Recommended Torque 6.0 N · m LS-110 70710 A-15T : Standard stock items □ : Stock in Japan ○ : Soon to be deleted C123
