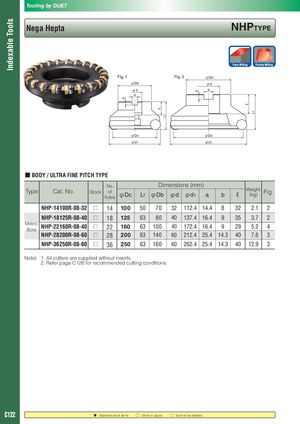

Indexable Tools b ℓ Lf b ℓ Lf Tooling by DIJET Nega Hepta nHPTyPE Fig. 1 Fig. 2 φDb φDb φd φd a a φDc φDc φd1 φd1 ■ BODY / ULTRA FINE PITCH TYPE No. Dimensions (mm) Type Cat. No. Stock offlutesφDc Lf φDb φd φd1 a b ℓ Weight (kg) Fig. NHP-14100R-08-32 □ 14 100 50 70 32 112.4 14.4 8 32 2.1 2 NHP-18125R-08-40 □ 18 125 63 80 40 137.4 16.4 9 35 3.7 2 MetricBoreNHP-22160R-08-40 □ 22 160 63 100 40 172.4 16.4 9 29 5.2 4 NHP-28200R-08-60 □ 28 200 63 140 60 212.4 25.4 14.3 40 7.6 3 NHP-36250R-08-60 □ 36 250 63 160 60 262.4 25.4 14.3 40 12.9 3 Note) 1. All cutters are supplied without inserts. 2. Refer page C126 for recommended cutting conditions. C122 : Standard stock items □ : Stock in Japan ○ : Soon to be deleted
