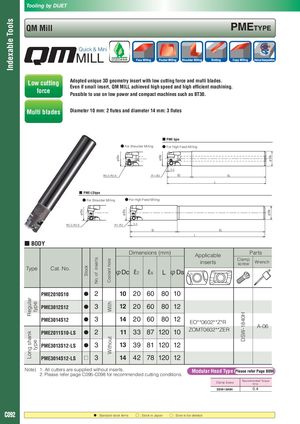

Tooling by DIJET Indexable Tools QM Mill PMETyPE Quick & Mini MILL Adopted unique 3D geometry insert with low cutting force and multi blades. Low cutting Even if small insert, QM MILL achieved high speed and high efficient machining. force Possible to use on low power and compact machines such as BT30. Multi blades Diameter 10 mm: 2 flutes and diameter 14 mm: 3 flutes ■ PME type ● For Shoulder Milling ● For High Feed Milling φDc φDc φDs 0.4 R0.2~R0.8 R1~R2 ℓ2 ℓs L ■ PME-LStype ● For Shoulder Milling ● For High Feed Milling φDc φDc φDs R0.2~R0.8 R1~R2 0.4 ℓ2 ℓs L ■ BODY Dimensions (mm) Applicable Parts No. of inserts Clamp Coolant hole inserts screw Wrench Stock Type Cat. No. φDc ℓ2 ℓs L φDs PME2010S10 ● 2 10 20 60 80 10 Regular type With PME3012S12 ● 3 12 20 60 80 12 DSW-1840H PME3014S12 ● 3 14 20 60 80 12 EO**0602**Z*R A-06 ZOMT0602**ZER PME2011S10-LS ● 2 11 33 87 120 10 Long shank Without type PME3013S12-LS ● 3 13 39 81 120 12 PME3014S12-LS □ 3 14 42 78 120 12 Note) 1. All cutters are supplied without inserts. Modular Head Type Please refer Page B090 2. Please refer page C095-C098 for recommended cutting conditions. Recommended Torque Clamp Screw N・m DSW-1840H 0.4 C092 : Standard stock items □ : Stock in Japan ○ : Soon to be deleted
