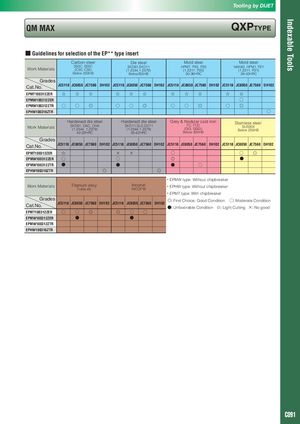

Tooling by DIJET Indexable Tools QM MAX QXPTyPE ■ Guidelines for selection of the EP** type insert Carbon steel Die steel Mold steel Mold steel S50C, S55C SKD61,SKD11 HPM7, PX5, P20 NAK80, HPM1, P21 Work Materials (C50, C55) (1.2344,1.2379) (1.2311, P20) (1.2311, P21) Below 250HB Below255HB 30-36HRC 38-43HRC Grades JC5118 JC8050 JC7560 DH102 JC5118 JC8050 JC7560 DH102 JC5118 JC8050 JC7560 DH102 JC5118 JC8050 JC7560 DH102 Cat.No. EPMT100312ZER ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ EPMW100312ZER ○ EPMW100312ZTR ○ ○ ◎ ○ ○ ◎ ○ ○ ◎ ○ ◎ EPHW100316ZTR ○ Hardened die steel Hardened die steel Grey & Nodular cast iron Stainless steel SKD61, DAC, DHA SKD11,SLD,DC11 FC, FCD SUS304 Work Materials (1.2344, 1.2379) (1.2344,1.2379) (GG, GGG) Below 250HB 42-52HRC 55-62HRC Below 300HB Grades JC5118 JC8050 JC7560 DH102 JC5118 JC8050 JC7560 DH102 JC5118 JC8050 JC7560 DH102 JC5118 JC8050 JC7560 DH102 Cat.No. EPMT100312ZER ☆ × × ○ ○ ◎ EPMW100312ZER ○ ○ ◎ ● EPMW100312ZTR ● ● ● ○ EPHW100316ZTR ◎ ◎ ・EPMW type: Without chipbreaker Work Materials Titanium alloy Inconel ・EPHW type: Without chipbreaker Ti-6AI-4V INCO718 ・EPMT type: With chipbreaker Grades ◎: First Choice, Good Condition ○: Moderate Condition JC5118 JC8050 JC7560 DH102 JC5118 JC8050 JC7560 DH102 Cat.No. ●: Unfavorable Condition ☆: Light Cutting ×: No good EPMT100312ZER ○ ○ ◎ ◎ ○ ○ EPMW100312ZER ● ● EPMW100312ZTR EPHW100316ZTR C091
