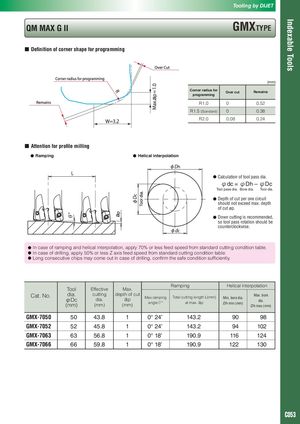

Indexable Tools Tooling by DIJET QM MAX G II GMXTYPE ■ Definition of corner shape for programming (mm) Corner radius for Over cut Remains programming R1.0 0 0.52 R1.5 (Standard) 0 0.38 R2.0 0.08 0.24 ■ Attention for profile milling ● Ramping ● Helical interpolation ● Calculation of tool pass dia. φdc = φDh – φDc Tool pass dia. Bore dia. Tool dia. ● Depth of cut per one circuit should not exceed max. depth of cut ap. ● Down cutting is recommended, so tool pass rotation should be counterclockwise. ● In case of ramping and helical interpolation, apply 70% or less feed speed from standard cutting condition table. ● In case of drilling, apply 50% or less Z axis feed speed from standard cutting condition table. ● Long consecutive chips may come out in case of drilling, confirm the safe condition sufficiently. Ramping Helical interpolation Tool Effective Max. Cat. No. dia.φDc(mm) cuttingdia.(mm)depth of cutap(mm)Max.ramping Total cutting length L(mm)angleθ°at max. apMin. bore dia.Dh min (mm)Max. boredia.Dh max (mm) GMX-7050 50 43.8 1 0° 24’ 143.2 90 98 GMX-7052 52 45.8 1 0° 24’ 143.2 94 102 GMX-7063 63 56.8 1 0° 18’ 190.9 116 124 GMX-7066 66 59.8 1 0° 18’ 190.9 122 130 C053
