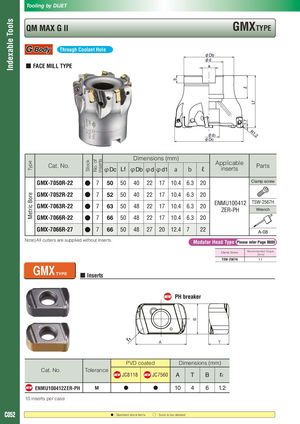

Tooling by DIJET Indexable Tools QM MAX G II GMXTYPE Through Coolant Hole ■ FACE MILL TYPE Dimensions (mm) inserts No. of Stock Applicable Type Cat. No. Parts φDc Lf φDb φd φd1 a b ℓ inserts GMX-7050R-22 ● 7 50 50 40 22 17 10.4 6.3 20 Clamp screw GMX-7052R-22 ● 7 52 50 40 22 17 10.4 6.3 20 Metric Bore ENMU100412 TSW-2567H GMX-7063R-22 ● 7 63 50 48 22 17 10.4 6.3 20 ZER-PH Wrench GMX-7066R-22 ● 7 66 50 48 22 17 10.4 6.3 20 GMX-7066R-27 ● 7 66 50 48 27 20 12.4 7 22 A-08 Note) All cutters are supplied without inserts. Modular Head Type Please refer Page B080 Recommended Torque Clamp Screw (N·m) TSW-2567H 1.1 GMX TYPE ■ Inserts PH breaker B r A T PVD coated Dimensions (mm) Cat. No. Tolerance JC8118 JC7560 A T B rε ENMU100412ZER-PH M ● ● 10 4 6 1.2 10 inserts per case C052 : Standard stock items ○ : Soon to be deleted
