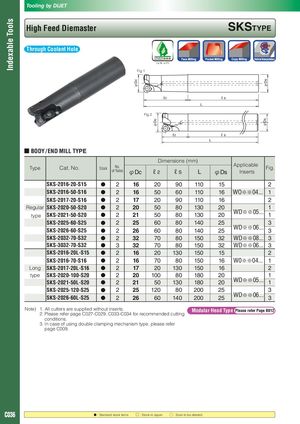

Общий каталог Dijet 2018 - страница 248

Tooling by DIJET Indexable Tools High Feed Diemaster SKSTyPE Through Coolant Hole (φ16, φ17) Fig.1 φDs φDc ℓ2 ℓs L Fig.2 φDs φDc ℓ2 ℓs L ■ BODY / END MILL TYPE Dimensions (mm) No. Applicable Type Cat. No. Stock Fig. of flutes φDc ℓ2 ℓS L φDs Inserts SKS-2016-20-S15 ● 2 16 20 90 110 15 2 SKS-2016-50-S16 ● 2 16 50 60 110 16 WO※※04... 1 SKS-2017-20-S16 ● 2 17 20 90 110 16 2 Regular SKS-2020-50-S20 ● 2 20 50 80 130 20 1 ● 2 50 80 130 20 WD※※05... 1 type SKS-2021-50-S20 21 SKS-2025-60-S25 ● 2 25 60 80 140 25 3 SKS-2026-60-S25 ● 2 26 60 80 140 25 WD※※06... 3 SKS-2032-70-S32 ● 2 32 70 80 150 32 WD※※08... 3 SKS-3032-70-S32 ● 3 32 70 80 150 32 WD※※06... 3 SKS-2016-20L-S15 ● 2 16 20 130 150 15 2 SKS-2016-70-S16 ● 2 16 70 80 150 16 W0※※04... 1 Long SKS-2017-20L-S16 ● 2 17 20 130 150 16 2 type SKS-2020-100-S20 ● 2 20 100 80 180 20 1 SKS-2021-50L-S20 ● 2 21 50 130 180 20 WD※※05... 1 SKS-2025-120-S25 ● 2 25 120 80 200 25 3 SKS-2026-60L-S25 ● 2 26 60 140 200 25 WD※※06... 3 Note) 1. All cutters are supplied without inserts. Modular Head Type Please refer Page B012 2. Please refer page C027-C029, C033-C034 for recommended cutting conditions. 3. In case of using double clamping mechanism type, please refer page C009. C036 : Standard stock items □ : Stock in Japan ○ : Soon to be deleted
