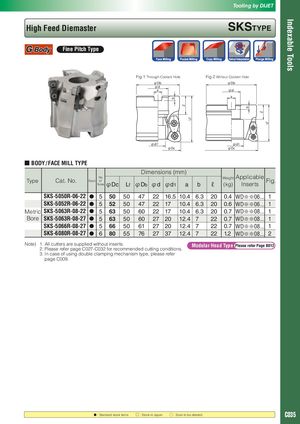

Indexable Tools b ℓ Lf b ℓ Lf Tooling by DIJET High Feed Diemaster SKSTyPE Fine Pitch Type Fig.1 Through Coolant Hole Fig.2 Without Coolant Hole φDb φDb φd a φd a φd1 φd1 φDc φDc ■ BODY / FACE MILL TYPE Dimensions (mm) Type Cat. No. No.Stockofflutes φDcLf φDb φd φd1 a b ℓ Weight(kg)ApplicableInsertsFig. SKS-5050R-06-22 ● 5 50 50 47 22 16.5 10.4 6.3 20 0.4 WD※※06... 1 SKS-5052R-06-22 ● 5 52 50 47 22 17 10.4 6.3 20 0.6 WD※※06... 1 Metric SKS-5063R-08-22 ● 5 63 50 60 22 17 10.4 6.3 20 0.7 WD※※08... 1 Bore SKS-5063R-08-27 ● 5 63 50 60 27 20 12.4 7 22 0.7 WD※※08... 1 SKS-5066R-08-27 ● 5 66 50 61 27 20 12.4 7 22 0.7 WD※※08... 1 SKS-6080R-08-27 ● 6 80 55 76 27 37 12.4 7 22 1.2 WD※※08... 2 Note) 1. All cutters are supplied without inserts. Modular Head Type Please refer Page B012 2. Please refer page C027-C032 for recommended cutting conditions. 3. In case of using double clamping mechanism type, please refer page C009. : Standard stock items □ : Stock in Japan ○ : Soon to be deleted C035
