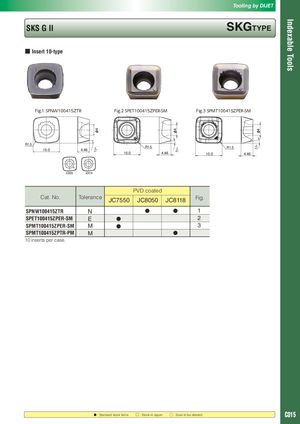

Tooling by DIJET Indexable Tools SKS G II SKGTYPE ■ Insert 10-type Fig.1 SPNW100415ZTR Fig.2 SPET100415ZPER-SM Fig.3 SPMT100415ZPER-SM φ4 φ4 φ4 R1.5 11° R1.5 R1.5 11° 11° 10.0 4.46 10.0 4.46 10.0 4.46 JC8050 JC8118 17%
DPBUFE

Cat. No. Tolerance Fig. JC7550 JC8050 JC8118 SPNW100415ZTR N ● ● 1 SPET100415ZPER-SM E ● 2 SPMT100415ZPER-SM M ● 3 SPMT100415ZPTR-PM M ● 10 inserts per case. : Standard stock items □ : Stock in Japan ○ : Soon to be deleted C015
