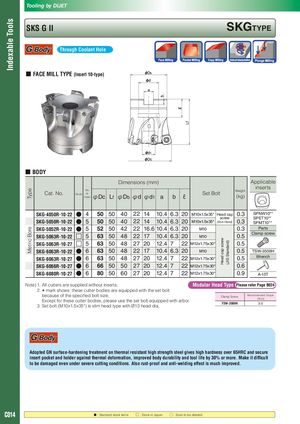

Tooling by DIJET
Indexable Tools
SKS G II SKGTyPE
Through Coolant Hole
■ FACE MILL TYPE (Insert 10-type)
■ BODY
Dimensions (mm) Applicable
inserts
Type
No. Weight
Cat. No. of Set Bolt
φDc Lf φDb φd φd1 a
Stock
flutes b ℓ (kg)
SKG-4050R-10-22 4 50 50 40 22 14 10.4 6.3 20 M10x1.5x35* Head cap 0.3 SPNW10**
screw SPET10**
SKG-5050R-10-22 5 50 50 40 22 14 10.4 6.3 20 M10x1.5x35* (Slim Head) 0.3 SPMT10**
5 52 50 42 22 16.6 10.4 6.3 20 0.3 Parts
Metric Bore
SKG-5052R-10-22 M10
Clamp screw
SKG-5063R-10-22 5 63 50 48 22 17 10.4 6.3 20 M10 0.5
Head cap screw
(JIS Standard)
SKG-5063R-10-27 5 63 50 48 27 20 12.4 7 22 M12x1.75x30* 0.5
SKG-6063R-10-22 6 63 50 48 22 17 10.4 6.3 20 M10 0.5 TSW-3509H
Wrench
SKG-6063R-10-27 6 63 50 48 27 20 12.4 7 22 M12x1.75x30* 0.5
SKG-6066R-10-27 6 66 50 50 27 20 12.4 7 22 M12x1.75x30* 0.6
SKG-6080R-10-27 6 80 50 60 27 20 12.4 7 22 M12x1.75x30* 0.9 A-15T
Note) 1. All cutters are supplied without inserts. Modular Head Type Please refer Page B024
2. mark shows: these cutter bodies are equipped with the set bolt
*
because of the specified bolt size. Clamp Screw Recommended Torque
(N·m)
Except for these cutter bodies, please use the set bolt equipped with arbor.
TSW-3509H 3.0
3. Set bolt (M10x1.5x35*) is slim head type with Ø13 head dia.
Adopted GN surface-hardening treatment on thermal resistant high strength steel gives high hardness over 65HRC and secure
insert pocket and holder against thermal deformation, improved body durability and tool life by 30% or more. Make it difficult
to be damaged even under severe cutting conditions. Also rust-proof and anti-welding effect is much improved.
C014 : Standard stock items □ : Stock in Japan ○ : Soon to be deleted
