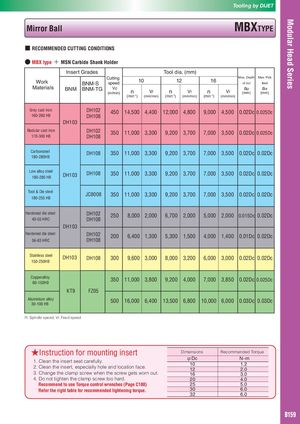

Общий каталог Dijet 2018 - страница 175

Modular Head Series Tooling by DIJET Mirror Ball MBXTYPE ■ RECOMMENDED CUTTING CONDITIONS ● MBX type ＋ MSN Carbide Shank Holder Insert Grades Tool dia. (mm) Work CuttingBNM-Sspeed 10 Max. Depth Max. Pick1216of cutfeed Materials BNM BNM-TG Vc(m/min) n Vf n Vf n Vf ap ae(mm)(mm) (min-1) (mm/min) (min-1) (mm/min) (min-1) (mm/min) Grey cast iron160-260 HB DH102 450 14,500 4,400 12,000 4,800 9,000 4,500 0.02Dc 0.025DcDH108 DH103 Nodular cast iron DH102 350 11,000 3,300 9,200 3,700 7,000 3,500 0.02Dc 0.025Dc 170-300 HB DH108 Carbonsteel DH108 350 11,000 3,300 9,200 3,700 7,000 3,500 0.02Dc 0.02Dc 180-280HB Low alloy steel180-280 HBDH103 DH108 350 11,000 3,300 9,200 3,700 7,000 3,500 0.02Dc 0.02Dc DH103 Tool & Die steel JC8008 350 11,000 3,300 9,200 3,700 7,000 3,500 0.02Dc 0.02Dc 180-255 HB Hardened die steel DH102 250 8,000 2,000 6,700 2,000 5,000 2,000 0.015Dc 0.02Dc 40-55 HRC DH108 DH103 Hardened die steel DH102 200 6,400 1,300 5,300 1,500 4,000 1,400 0.01Dc 0.02Dc 56-63 HRC DH108 Stainless steel DH103 DH108 300 9,600 3,000 8,000 3,200 6,000 3,000 0.02Dc 0.02Dc 150-250HB Copperalloy80-150HB 350 11,000 3,800 9,200 4,000 7,000 3,850 0.02Dc 0.025Dc KT9 FZ05 Aluminium alloy30-100 HB 500 16,000 6,400 13,500 6,800 10,000 6,000 0.03Dc 0.03Dc n: Spindle speed, Vf: Feed speed ★Instruction for mounting insert Dimensions Recommended Torque 1. Clean the insert seat carefully.2. Clean the insert, especially hole and location face.φDc1012 N~m1. 22.0 3. Change the clamp screw when the screw gets worn out. 16 3.0 4. Do not tighten the clamp screw too hard. 20 4.0 Recommend to use Torque control wrenches (Page C180) 25 5.0 Refer the right table for recommended tightening torque. 30 6.0 32 6.0 B159
