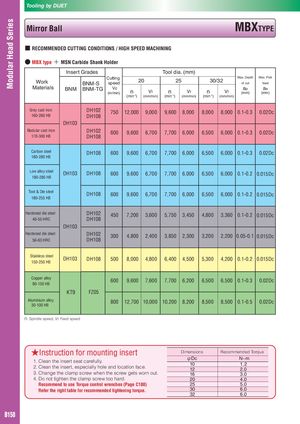

Modular Head Series Tooling by DIJET Mirror Ball MBXTYPE ■ RECOMMENDED CUTTING CONDITIONS / HIGH SPEED MACHINING ● MBX type ＋ MSN Carbide Shank Holder Insert Grades Tool dia. (mm) Work CuttingBNM-Sspeed 20 Max. Depth Max. Pick2530/32of cutfeed Materials BNM BNM-TG Vc(m/min) n Vf n Vf n Vf ap ae(mm)(mm) (min-1) (mm/min) (min-1) (mm/min) (min-1) (mm/min) Grey cast iron DH102 750 12,000 9,000 9,600 8,000 8,000 8,000 0.1-0.3 0.02Dc 160-260 HB DH108 DH103 Nodular cast iron DH102 600 9,600 6,700 7,700 6,000 6,500 6,000 0.1-0.3 0.02Dc 170-300 HB DH108 Carbon steel DH108 600 9,600 6,700 7,700 6,000 6,500 6,000 0.1-0.3 0.02Dc 180-280 HB Low alloy steel DH103 DH108 600 9,600 6,700 7,700 6,000 6,500 6,000 0.1-0.2 0.015Dc 180-280 HB Tool & Die steel DH108 600 9,600 6,700 7,700 6,000 6,500 6,000 0.1-0.2 0.015Dc 180-255 HB Hardened die steel DH102 450 7,200 3,600 5,750 3,450 4,800 3,360 0.1-0.2 0.015Dc 40-55 HRC DH108 DH103 Hardened die steel DH102 300 4,800 2,400 3,850 2,300 3,200 2,200 0.05-0.1 0.015Dc 56-63 HRC DH108 Stainless steel150-250 HBDH103DH108 500 8,000 4,800 6,400 4,500 5,300 4,200 0.1-0.2 0.015Dc Copper alloy 600 9,600 7,600 7,700 6,200 6,500 6,500 0.1-0.3 0.02Dc 80-150 HB KT9 FZ05 Aluminium alloy 800 12,700 10,000 10,200 8,200 8,500 8,500 0.1-0.5 0.02Dc 30-100 HB n: Spindle speed, Vf: Feed speed ★Instruction for mounting insert Dimensions Recommended Torque 1. Clean the insert seat carefully.2. Clean the insert, especially hole and location face.φDc1012 N~m1. 22.0 3. Change the clamp screw when the screw gets worn out. 16 3.0 4. Do not tighten the clamp screw too hard. 20 4.0 Recommend to use Torque control wrenches (Page C180) 25 5.0 Refer the right table for recommended tightening torque. 30 6.0 32 6.0 B158
