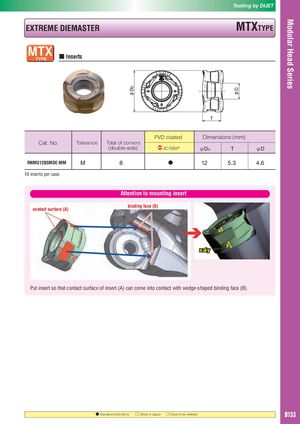

Modular Head Series φDc φD Tooling by DIJET EXTREME DIEMASTER MTXTYPE MTX TY PE ■ Inserts T PVD coated Dimensions (mm) Cat. No. Tolerance Total of corners (double-side) JC7560P φDc T φD RNMU1205MOE-MM M 8 ● 12 5.3 4.6 10 inserts per case. Attention to mounting insert contact surface (A) binding face (B) x y x y Put insert so that contact surface of insert (A) can come into contact with wedge-shaped binding face (B). ● Standard stock items □: Stock in Japan ○: Soon to be deleted B133
