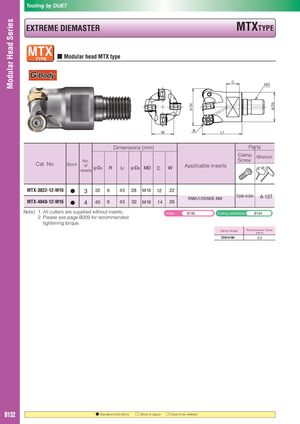

Tooling by DIJET Modular Head Series EXTREME DIEMASTER MTXTYPE MTX ■ Modular head MTX type TYPE C MD φDb φDc W R Lf Dimensions (mm) Parts Clamp Wrench No. Screw Cat. No. Stock of Applicable inserts inserts φDc R Lf φDb MD C W MTX-3032-12-M16 ● 3 32 6 43 28 M16 12 22 RNMU1205MOE-MM TSW-410H A-15T MTX-4040-12-M16 ● 4 40 6 43 32 M16 14 26 Note) 1. All cutters are supplied without inserts. Arbor B193 Cutting conditions B134 2. Please see page B009 for recommended tightening torque. Clamp Screw Recommended Torque (N・m) TSW-410H 3,5 B132 ● Standard stock items □: Stock in Japan ○: Soon to be deleted
