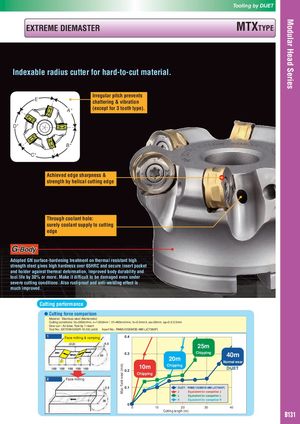

Tooling by DIJET Modular Head Series EXTREME DIEMASTER MTXTYPE Indexable radius cutter for hard-to-cut material. ▼ Irregular pitch prevents ▼ E° chattering & vibration ▼ A° (except for 3 tooth type). ▼ D° ▼ ▼ ▼ ▼ B° C° ▼ ▼ Achieved edge sharpness & strength by helical cutting edge Through coolant hole: surely coolant supply to cutting edge Adopted GN surface-hardening treatment on thermal resistant high strength steel gives high hardness over 65HRC and secure insert pocket and holder against thermal deformation, improved body durability and tool life by 30% or more. Make it difficult to be damaged even under severe cutting conditions. Also rust-proof and anti-welding effect is much improved. Cutting performance ● Cutting force comparison Material: Stainless steel (Martensitic) Cutting conditions: Vc=260m/min, n=1,650min-1, Vf=495mm/min, fz=0.3mm/t, ae=30mm, ap=0.5-2.5mm Dow cut – Air blow, Test by 1 insert Tool No.: EXTDM-5050R-12-22( (ø50) Insert No.: RNMU1205MOE-MM (JC7560P) 1 Face milling & ramping 0.4 (2.2) 0.5 ◆ 25m 0.3 ▲ Chipping 30 40m 1° 1° 20m ■ Normal wear ● Max. flank wear (mm) Chipping 100 100 100 100 100 10m DIJET 0.2 Chipping ■ ▲ ■ ◆ 2 Face milling ■ ● ● ● ● ■ ◆ 2.5 0.1 ● ● DIJET: RNMU1205MOE-MM (JC7560P) ◆ ● ▲ J Equivalent for competitor J ■ L Equivalent for competitor L 30 ◆ R Equivalent for competitor R 0▲ ● 0 10 20 30 40 Cutting length (m) B131
