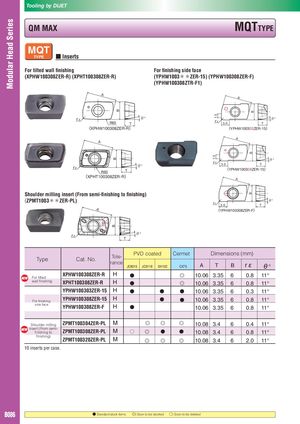

Tooling by DIJET QM MAX MQTTYPE MQT TYPE ■ Inserts For tilted wall finishing For finishing side face (XPHW100308ZER-R) (XPHT100308ZER-R) (YPHW1003＊＊ZER-15) (YPHW100308ZER-F) (YPHW100308ZTR-F1) A A B B 1.5 rε θ° θ° rε R60 Ｔ 3.0 T （XPHW100308ZER-R） （YPHW100303ZER-15） A A B 1.5 θ° B rε θ° 3.0 T rε （YPHW100308ZER-15） R60 T （XPHT100308ZER-R） A B Shoulder milling insert (From semi-finishing to finishing) (ZPMT1003＊＊ZER-PL) rε θ° 3.0 T A （YPHW100308ZER-F） B θ° rε T PVD coated Cermet Dimensions (mm) Tole- Type Cat. No. rance JC8015 JC8118 DH102 CX75 A T B rε θ° For tilted XPHW100308ZER-R H ◎ 10.06 3.35 6 0.8 11° wall finishing XPHT100308ZER-R H ◎ 10.06 3.35 6 0.8 11° YPHW100303ZER-15 H 10.06 3.35 6 0.3 11° For finishing YPHW100308ZER-15 H 10.06 3.35 6 0.8 11° side face YPHW100308ZER-F H 10.06 3.35 6 0.8 11° Shoulder milling ZPMT100304ZER-PL M ◎ ◎ ◎ 10.08 3.4 6 0.4 11° insert (From semi- finishing to ZPMT100308ZER-PL M ◎ 10.08 3.4 6 0.8 11° finishing) ZPMT100320ZER-PL M ◎ ◎ ◎ 10.08 3.4 6 2.0 11° 10 inserts per case. B086 ● Standard stock items ◎: Soon to be stocked ○: Soon to be deleted
