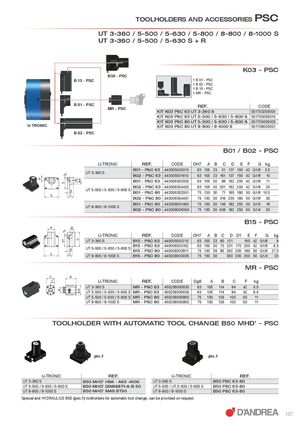

TOOLHOLDERS AND ACCESSORIES PSC UT 3-360 / 5-500 / 5-630 / 5-800 / 8-800 / 8-1000 S UT 3-360 / 5-500 / 5-630 S + R K03 - PSC B50 - PSC B 15 - PSC 1 B 01 - PSC 1 B 02 - PSC 1 B 15 - PSC 1 MR - PSC B 01 - PSC MR - PSC REF. CODE KIT K03 PSC 63 UT 3-360 S 501703259304 KIT K03 PSC 63 UT 5-500 / 5-630 / 5-800 S 501705009310 KIT K03 PSC 80 UT 5-500 / 5-630 / 5-800 S 501705009302 U-TRONIC KIT K03 PSC 80 UT 8-800 / 8-1000 S 501708009301 B 02 - PSC B01 / B02 - PSC U-TRONIC REF. CODE ØH7 A B C D E F G kg B01 - PSC 63 443005000310 63 105 23 31 137 150 42 G1/8' 3.5 UT 3-360 S B02 - PSC 63 443005001610 63 105 23 161 137 150 42 G1/8' 10 B01 - PSC 63 443006302002 63 105 30 86 162 200 42 G1/8' 11 B02 - PSC 63 443006304452 63 105 30 331 162 200 42 G1/8' 20 UT 5-500 / 5-630 / 5-800 S B01 - PSC 80 443006302001 75 130 30 71 185 180 50 G1/8' 10.5 B02 - PSC 80 443006304451 75 130 30 316 235 180 50 G1/8' 30 B01 - PSC 80 443008001460 75 130 30 146 182 250 50 G1/4' 16 UT 8-800 / 8-1000 S B02 - PSC 80 443008006360 75 130 30 636 182 250 50 G1/4' 53 B15 - PSC U-TRONIC REF. CODE ØH7 A B C D D1 E F G kg UT 3-360 S B15 - PSC 63 445005001210 63 100 23 60 121 150 42 G1/8' 8 UT 5-500 / 5-630 / 5-800 S B15 - PSC 63B15 - PSC 80445006303152445006303911631003070201 170 200 42 G1/8' 6.575130398526220018050G1/8'27.5 UT 8-800 / 8-1000 S B15 - PSC 80 445008003005 75 130 30 300 200 250 50 G1/4' 33 MR - PSC U-TRONIC REF. CODE Øg6 A B C F kg UT 3-360 S MR - PSC 63 450206000630 63 105 114 84 42 6.5 UT 5-500 / 5-630 / 5-800 S MR - PSC 63 450206000630 63 105 114 84 42 6.5 UT 5-500 / 5-630 / 5-800 S MR - PSC 80 450208000800 75 130 129 100 50 11 UT 8-800 / 8-1000 S MR - PSC 80 450208000800 75 130 129 100 50 11 TOOLHOLDER WITH AUTOMATIC TOOL CHANGE B50 MHD’ - PSC pic.1 pic.1 U-TRONIC REF. U-TRONIC REF. UT 3-360 S B50 MHD’ HSK - A63 -A100 UT 3-360 S B50 PSC 63-80 UT 5-500 / 5-630 / 5-800 S B50 MHD’ DIN69871-A-B 50 UT 5-500 / UT 5-630 / 5-800 S B50 PSC 63-80 UT 8-800 / 8-1000 S B50 MHD’ MAS BT50 UT 8-800 / 8-1000 S B50 PSC 63-80 Special and HYDRAULICS B50 (pic.1) toolholders for automatic tool change, can be provided on request. 107
