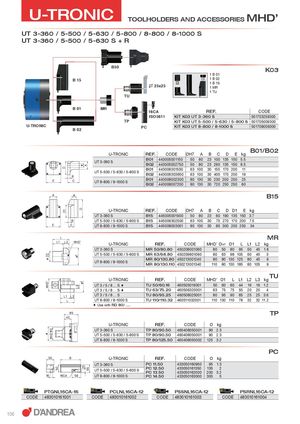

Общий каталог D'andrea 2022 - страница 107

U-TRONIC TOOLHOLDERS AND ACCESSORIES MHD’ UT 3-360 / 5-500 / 5-630 / 5-800 / 8-800 / 8-1000 S UT 3-360 / 5-500 / 5-630 S + R B50 K03 1 B 01 B 15 1 B 02 1 B 15 25x25 1 MR 1 TU TU B 01 MR 16CA REF. CODE ISO5611 KIT K03 UT 3-360 S 501703259300 TP KIT K03 UT 5-500 / 5-630 / 5-800 S 501705009300 U-TRONIC B 02 PC KIT K03 UT 8-800 / 8-1000 S 501708009300 U-TRONIC REF. CODE ØH7 A B C D E kg B01/B02 UT 3-360 S B01 443005001150 50 80 23 100 135 150 5.5B024430050027505080232601351508.5 UT 5-500 / 5-630 / 5-800 S B01 443006301550B024430063036506310030155170 200 11631003040017020019 UT 8-800 / 8-1000 S B01 443008002300 80 130 30 230 200 250 25B02443008007200801303072025025060 B15 U-TRONIC REF. CODE ØH7 A B C D D1 E kg UT 3-360 S B15 445005001900 50 80 23 60 190 135 150 3.7 UT 5-500 / 5-630 / 5-800 S B15 445006302500 63 100 30 70 270 170 200 7.5 UT 8-800 / 8-1000 S B15 445008003001 80 130 30 85 300 200 250 34 MR U-TRONIC REF. CODE MHD’ ØH7 Ø1 L L1 L2 kg UT 3-360 S MR 50/80.80 450208001060 80 50 80 95 50 45 1.6 UT 5-500 / 5-630 / 5-800 S MR 63/98.80 450209801060 80 63 98 105 60 45 3 UT 8-800 / 8-1000 S MR 80/130.80 450213001240 80 80 130 125 80 45 6MR 80/130.11045021300134011080130185801059 U-TRONIC REF. CODE MHD’ Ø1 L L1 L2 L3 kg TU UT 3 / 5 / 8 ... S i TU 50/60.16 460505016001 50 60 60 44 16 16 1.2 UT 3 / 5 / 8 ... S i TU 63/75.20 460506320001 63 75 75 55 20 20 4 UT 3 / 5 / 8 ... S TU 80/95.25 460508025001 80 95 90 65 25 25 3.6 UT 8-800 / 8-1000 S TU 110/110.32 460511032001 110 130 110 78 32 32 11.2 iUse with RD 80/ .... TP U-TRONIC REF. CODE Ø kg UT 3-360 S TP 80/90.50 460408050001 90 2.3 UT 5-500 / 5-630 / 5-800 S TP 80/90.50 460408050001 90 2.3 UT 8-800 / 8-1000 S TP 80/125.50 460408050002 125 3.2 PC U-TRONIC REF. CODE Ø kg UT 3-360 S PC 11.50 433050160950 95 1.3 UT 5-500 / 5-630 / 5-800 S PC 12.50PC 13.50433050161350 135 24330501620002003.2 UT 8-800 / 8-1000 S PC 14.50 433050163000 300 5 PTGNL16CA-16 PCLNL16CA-12 PSSNL16CA-12 PSRNL16CA-12 CODE 483010161001 CODE 483010161002 CODE 483010161003 CODE 483010161004 106
