- NORMY DOTYCZkCE PODSTAWOWYCH UCHWYTÓW
- MALAFA STANDARTLARI

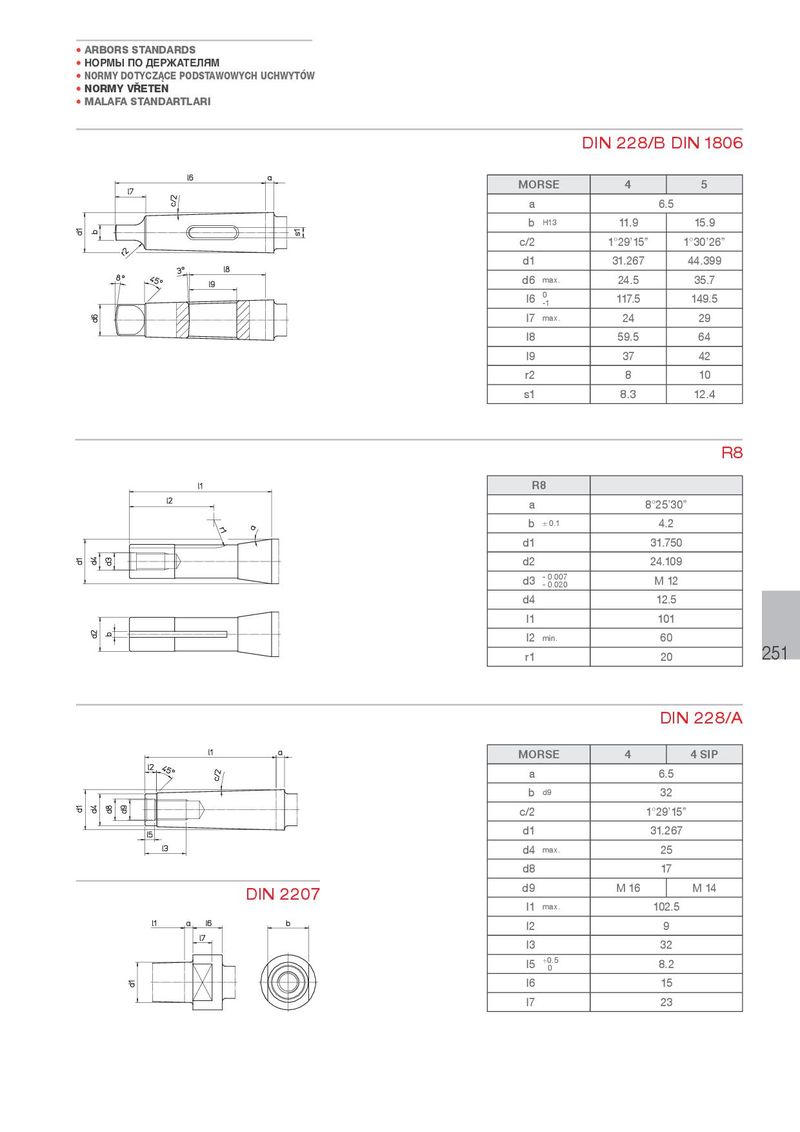

DIN 228/B DIN 1806
| MORSE | 4 | 5 |
| a | 6. | 5 |
| b H13 | 11.9 | 15.9 |
| c/2 | 1°29’15” | 1°30’26” |
| d1 | 31.267 | 44.399 |
| d6 max. | 24.5 | 35.7 |
| l6 0 -1 | 117.5 | 149.5 |
| l7 max. | 24 | 29 |
| l8 | 59.5 | 64 |
| l9 | 37 | 42 |
| r2 | 8 | 10 |
| s1 | 8.3 | 12.4 |
R8
| R8 | |
| a | 8°25’30” |
| b ± 0.1 | 4.2 |
| d1 | 31.750 |
| d2 | 24.109 |
| d3 - 0.007 - 0.020 | M 12 |
| d4 | 12.5 |
| l1 | 101 |
| l2 min. | 60 |
| r1 | 20 |
251
| DIN 228/A | |
| MORSE | 4 4 SIP |
| a | 6.5 |
| b d9 | 32 |
| c/2 | 1°29’15” |
| d1 | 31.267 |
| d4 max. | 25 |
| d8 | 17 |
| d9 | M 16 M 14 |
| l1 max. | 102.5 |
| l2 | 9 |
| l3 | 32 |
| l5 +0.5 0 | 8.2 |
| l6 | 15 |
| l7 | 23 |
