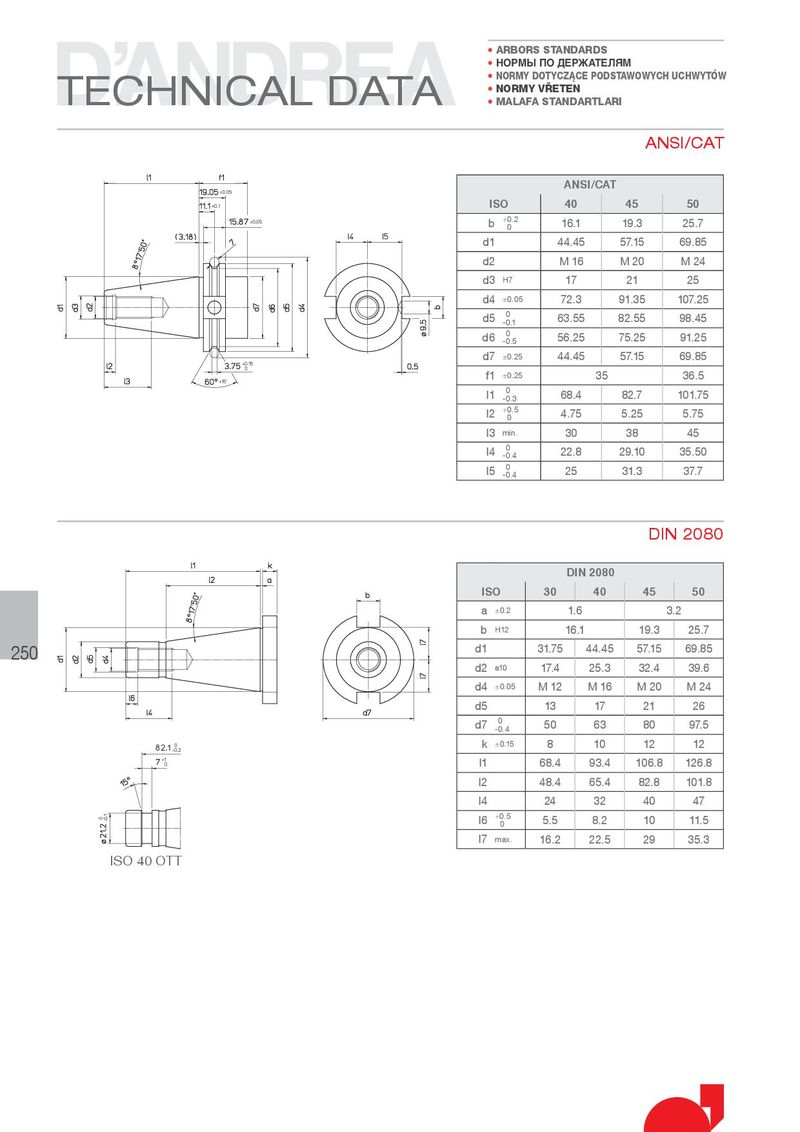

- MALAFA STANDARTLARI
ANSI/CAT
| IS | O | ANSI/C 40 | AT 45 | 50 |
| b | +0.2 0 | 16.1 | 19.3 | 25.7 |
| d1 | 44.45 | 57.15 | 69.85 | |
| d2 | M 16 | M 20 | M 24 | |
| d3 | H7 | 17 | 21 | 25 |
| d4 | ±0.05 | 72.3 | 91.35 | 107.25 |
| d5 | 0 -0.1 | 63.55 | 82.55 | 98.45 |
| d6 | 0 -0.5 | 56.25 | 75.25 | 91.25 |
| d7 | ±0.25 | 44.45 | 57.15 | 69.85 |
| f1 | ±0.25 | 3 | 5 | 36.5 |
| l1 | 0 -0.3 | 68.4 | 82.7 | 101.75 |
| l2 | +0.5 0 | 4.75 | 5.25 | 5.75 |
| l3 | min. | 30 | 38 | 45 |
| l4 | 0 -0.4 | 22.8 | 29.10 | 35.50 |
| l5 | 0 -0.4 | 25 | 31.3 | 37.7 |
DIN 2080
| IS | O | D 30 | IN 2080 40 | 45 | 50 |
| a | ±0.2 | 1 | .6 | 3 | .2 |
| b | H12 | 1 | 6.1 | 19.3 | 25.7 |
| d1 | 31.75 | 44.45 | 57.15 | 69.85 | |
| d2 | a10 | 17.4 | 25.3 | 32.4 | 39.6 |
| d4 | ±0.05 | M 12 | M 16 | M 20 | M 24 |
| d5 | 13 | 17 | 21 | 26 | |
| d7 | 0 -0.4 | 50 | 63 | 80 | 97.5 |
| k | ±0.15 | 8 | 10 | 12 | 12 |
| l1 | 68.4 | 93.4 | 106.8 | 126.8 | |
| l2 | 48.4 | 65.4 | 82.8 | 101.8 | |
| l4 | 24 | 32 | 40 | 47 | |
| l6 | +0.5 0 | 5.5 | 8.2 | 10 | 11.5 |
| l7 | max. | 16.2 | 22.5 | 29 | 35.3 |
