- MALAFA STANDARTLARI

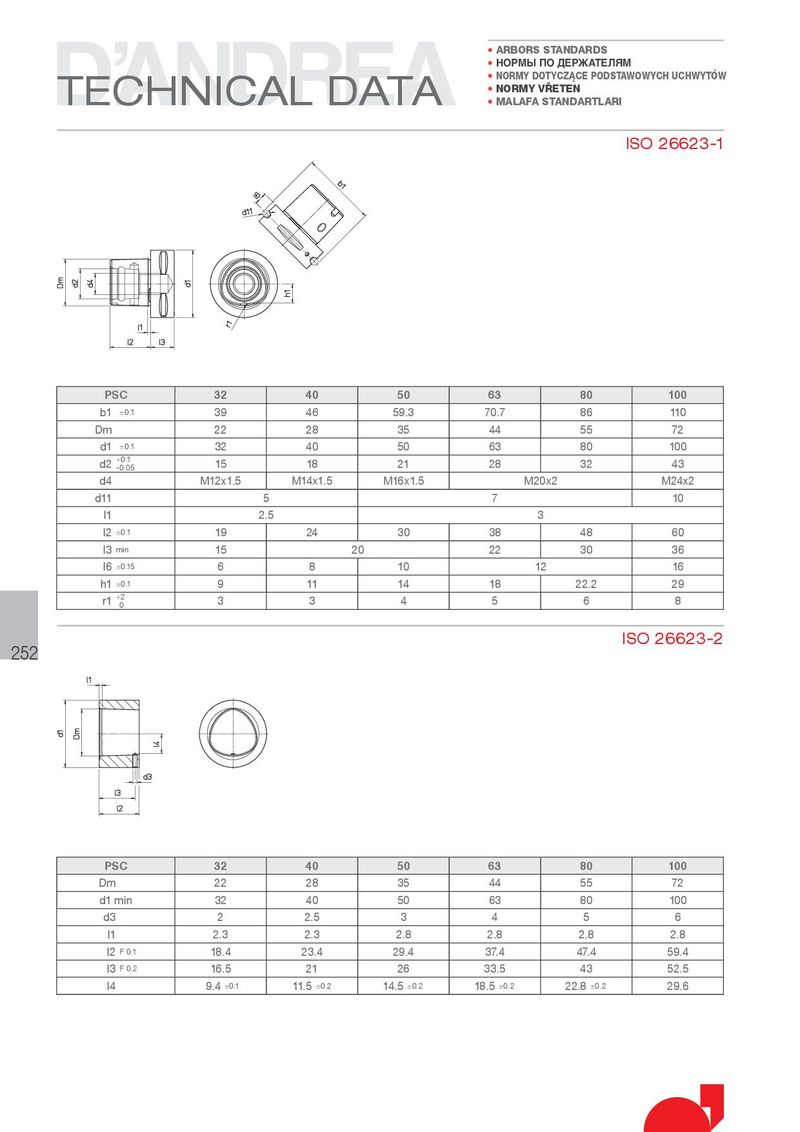

ISO 26623-1
| PSC | 32 | 40 | 50 | 63 | 80 | 100 | ||
| b1 ±0.1 | 39 | 46 | 59.3 | 70.7 | 86 | 110 | ||
| Dm | 22 | 28 | 35 | 44 | 55 | 72 | ||
| d1 ±0.1 | 32 | 40 | 50 | 63 | 80 | 100 | ||
| d2 +0.1 -0.05 | 15 | 18 | 21 | 28 | 32 | 43 | ||
| d4 | M12x1.5 | M14x1.5 | M16x1.5 | M20x | 2 | M24x2 | ||
| d11 | 5 | 7 | 10 | |||||
| l1 | 2. | 5 | 3 | |||||
| l2 ±0.1 | 19 | 24 | 30 | 38 | 48 | 60 | ||
| l3 min | 15 | 2 | 0 | 22 | 30 | 36 | ||
| l6 ±0.15 | 6 | 8 | 10 | 12 | 16 | |||
| h1 ±0.1 | 9 | 11 | 14 | 18 | 22.2 | 29 | ||
| r1 +2 0 | 3 | 3 | 4 | 5 | 6 | 8 |
ISO 26623-2
252
| PSC | 32 | 40 | 50 | 63 | 80 | 100 |
| Dm | 22 | 28 | 35 | 44 | 55 | 72 |
| d1 min | 32 | 40 | 50 | 63 | 80 | 100 |
| d3 | 2 | 2.5 | 3 | 4 | 5 | 6 |
| l1 | 2.3 | 2.3 | 2.8 | 2.8 | 2.8 | 2.8 |
| l2 F 0.1 | 18.4 | 23.4 | 29.4 | 37.4 | 47.4 | 59.4 |
| l3 F 0.2 | 16.5 | 21 | 26 | 33.5 | 43 | 52.5 |
| l4 | 9.4 ±0.1 | 11.5 ±0.2 | 14.5 ±0.2 | 18.5 ±0.2 | 22.8 ±0.2 | 29.6 |
