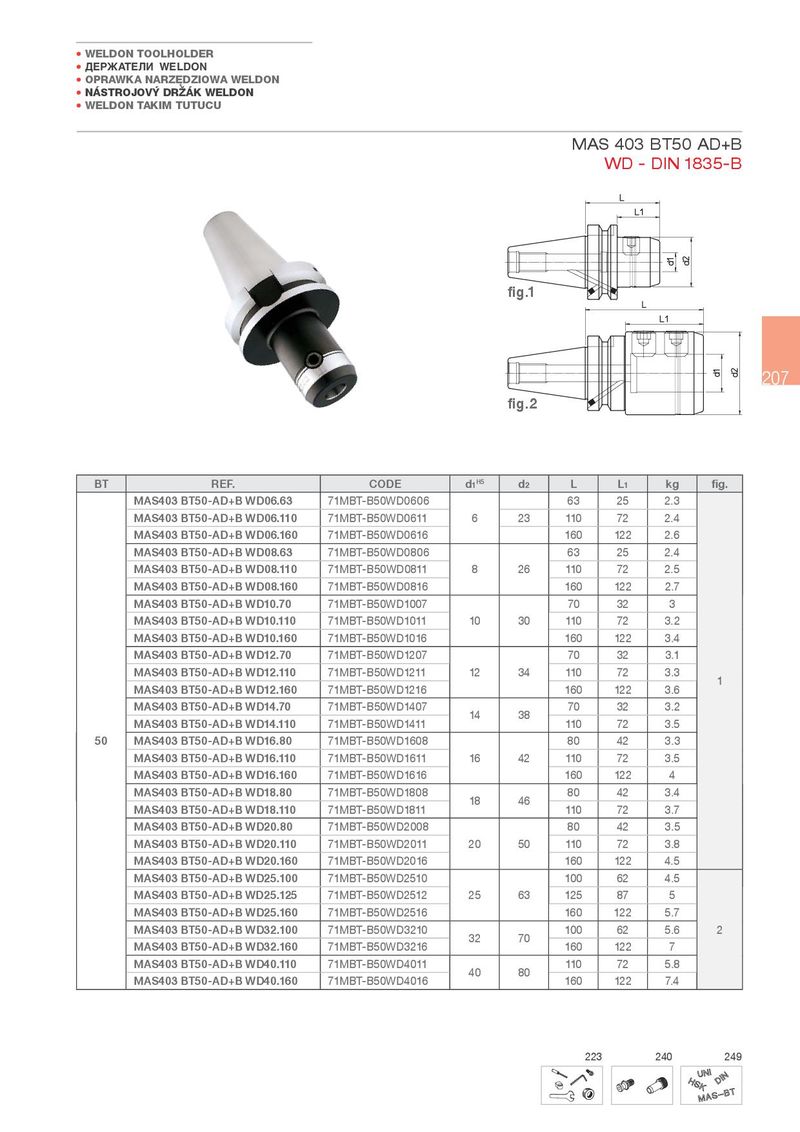

Общий каталог D'ANDREA 2018 - страница 208

• WELDON TOOLHOLDER • ДЕРЖАТЕЛИ WELDON • OPRAWKA NARZ}DZIOWA WELDON • NÁSTROJOV¹ DR½ÁK WELDON • WELDON TAKIM TUTUCU MAS 403 BT50 AD+B WD - DIN 1835-B fig.1 207 fig.2 BT REF. CODE d1H5 d2 L L1 kg fig. MAS403 BT50-AD+B WD06.63 71MBT-B50WD0606 63 25 2.3 MAS403 BT50-AD+B WD06.110 71MBT-B50WD0611 6 23 110 72 2.4 MAS403 BT50-AD+B WD06.160 71MBT-B50WD0616 160 122 2.6 MAS403 BT50-AD+B WD08.63 71MBT-B50WD0806 63 25 2.4 MAS403 BT50-AD+B WD08.110 71MBT-B50WD0811 8 26 110 72 2.5 MAS403 BT50-AD+B WD08.160 71MBT-B50WD0816 160 122 2.7 MAS403 BT50-AD+B WD10.70 71MBT-B50WD1007 70 32 3 MAS403 BT50-AD+B WD10.110 71MBT-B50WD1011 10 30 110 72 3.2 MAS403 BT50-AD+B WD10.160 71MBT-B50WD1016 160 122 3.4 MAS403 BT50-AD+B WD12.70 71MBT-B50WD1207 70 32 3.1 MAS403 BT50-AD+B WD12.110 71MBT-B50WD1211 12 34 110 72 3.3 1 MAS403 BT50-AD+B WD12.160 71MBT-B50WD1216 160 122 3.6 MAS403 BT50-AD+B WD14.70 71MBT-B50WD1407 14 38 70 32 3.2 MAS403 BT50-AD+B WD14.110 71MBT-B50WD1411 110 72 3.5 50 MAS403 BT50-AD+B WD16.80 71MBT-B50WD1608 80 42 3.3 MAS403 BT50-AD+B WD16.110 71MBT-B50WD1611 16 42 110 72 3.5 MAS403 BT50-AD+B WD16.160 71MBT-B50WD1616 160 122 4 MAS403 BT50-AD+B WD18.80 71MBT-B50WD1808 18 46 80 42 3.4 MAS403 BT50-AD+B WD18.110 71MBT-B50WD1811 110 72 3.7 MAS403 BT50-AD+B WD20.80 71MBT-B50WD2008 80 42 3.5 MAS403 BT50-AD+B WD20.110 71MBT-B50WD2011 20 50 110 72 3.8 MAS403 BT50-AD+B WD20.160 71MBT-B50WD2016 160 122 4.5 MAS403 BT50-AD+B WD25.100 71MBT-B50WD2510 100 62 4.5 MAS403 BT50-AD+B WD25.125 71MBT-B50WD2512 25 63 125 87 5 MAS403 BT50-AD+B WD25.160 71MBT-B50WD2516 160 122 5.7 MAS403 BT50-AD+B WD32.100 71MBT-B50WD3210 32 70 100 62 5.6 2 MAS403 BT50-AD+B WD32.160 71MBT-B50WD3216 160 122 7 MAS403 BT50-AD+B WD40.110 71MBT-B50WD4011 40 80 110 72 5.8 MAS403 BT50-AD+B WD40.160 71MBT-B50WD4016 160 122 7.4 223 240 249
