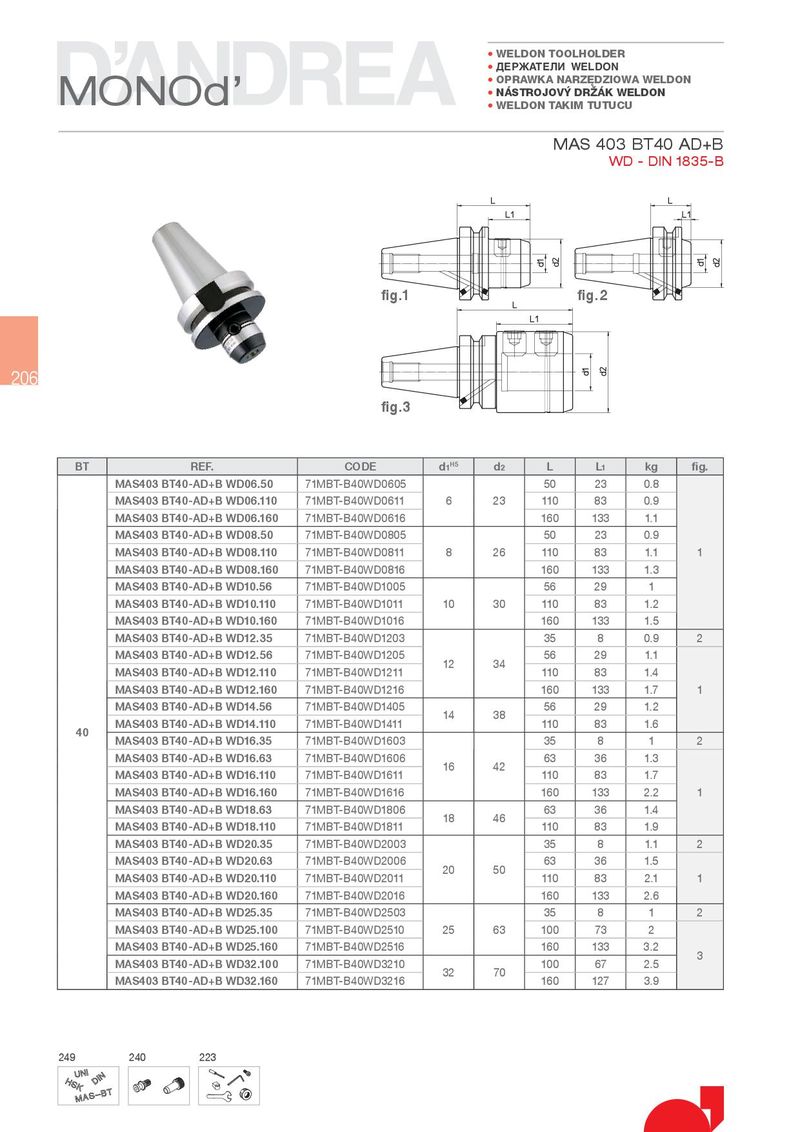

Общий каталог D'ANDREA 2018 - страница 207
Навигация
Общий каталог D'andrea 2022
MONOd’ OPRAWKA NARZ}DZIOWA WELDON
- WELDON TAKIM TUTUCU
MAS 403 BT40 AD+B
WD - DIN 1835-B
fig.1 fig.2
206
fig.3
| BT REF. | CODE | d1H5 | d2 | L | L1 | kg | fig. |
| MAS403 BT40-AD+B WD06.50 | 71MBT-B40WD0605 | 50 | 23 | 0.8 | |||
| MAS403 BT40-AD+B WD06.110 | 71MBT-B40WD0611 | 6 | 23 | 110 | 83 | 0.9 | |
| MAS403 BT40-AD+B WD06.160 | 71MBT-B40WD0616 | 160 | 133 | 1.1 | |||
| MAS403 BT40-AD+B WD08.50 | 71MBT-B40WD0805 | 50 | 23 | 0.9 | |||
| MAS403 BT40-AD+B WD08.110 | 71MBT-B40WD0811 | 8 | 26 | 110 | 83 | 1.1 | 1 |
| MAS403 BT40-AD+B WD08.160 | 71MBT-B40WD0816 | 160 | 133 | 1.3 | |||
| MAS403 BT40-AD+B WD10.56 | 71MBT-B40WD1005 | 56 | 29 | 1 | |||
| MAS403 BT40-AD+B WD10.110 | 71MBT-B40WD1011 | 10 | 30 | 110 | 83 | 1.2 | |
| MAS403 BT40-AD+B WD10.160 | 71MBT-B40WD1016 | 160 | 133 | 1.5 | |||
| MAS403 BT40-AD+B WD12.35 | 71MBT-B40WD1203 | 35 | 8 | 0.9 | 2 | ||
| MAS403 BT40-AD+B WD12.56 | 71MBT-B40WD1205 | 12 | 34 | 56 | 29 | 1.1 | |
| MAS403 BT40-AD+B WD12.110 | 71MBT-B40WD1211 | 110 | 83 | 1.4 | |||
| MAS403 BT40-AD+B WD12.160 | 71MBT-B40WD1216 | 160 | 133 | 1.7 | 1 | ||
| MAS403 BT40-AD+B WD14.56 | 71MBT-B40WD1405 | 14 | 38 | 56 | 29 | 1.2 | |
| 40 MAS403 BT40-AD+B WD14.110 | 71MBT-B40WD1411 | 110 | 83 | 1.6 | |||
| MAS403 BT40-AD+B WD16.35 | 71MBT-B40WD1603 | 35 | 8 | 1 | 2 | ||
| MAS403 BT40-AD+B WD16.63 | 71MBT-B40WD1606 | 16 | 42 | 63 | 36 | 1.3 | |
| MAS403 BT40-AD+B WD16.110 | 71MBT-B40WD1611 | 110 | 83 | 1.7 | |||
| MAS403 BT40-AD+B WD16.160 | 71MBT-B40WD1616 | 160 | 133 | 2.2 | 1 | ||
| MAS403 BT40-AD+B WD18.63 | 71MBT-B40WD1806 | 18 | 46 | 63 | 36 | 1.4 | |
| MAS403 BT40-AD+B WD18.110 | 71MBT-B40WD1811 | 110 | 83 | 1.9 | |||
| MAS403 BT40-AD+B WD20.35 | 71MBT-B40WD2003 | 35 | 8 | 1.1 | 2 | ||
| MAS403 BT40-AD+B WD20.63 | 71MBT-B40WD2006 | 20 | 50 | 63 | 36 | 1.5 | |
| MAS403 BT40-AD+B WD20.110 | 71MBT-B40WD2011 | 110 | 83 | 2.1 | 1 | ||
| MAS403 BT40-AD+B WD20.160 | 71MBT-B40WD2016 | 160 | 133 | 2.6 | |||
| MAS403 BT40-AD+B WD25.35 | 71MBT-B40WD2503 | 35 | 8 | 1 | 2 | ||
| MAS403 BT40-AD+B WD25.100 | 71MBT-B40WD2510 | 25 | 63 | 100 | 73 | 2 | |
| MAS403 BT40-AD+B WD25.160 | 71MBT-B40WD2516 | 160 | 133 | 3.2 | 3 | ||
| MAS403 BT40-AD+B WD32.100 | 71MBT-B40WD3210 | 32 | 70 | 100 | 67 | 2.5 | |
| MAS403 BT40-AD+B WD32.160 | 71MBT-B40WD3216 | 160 | 127 | 3.9 |
