- FREZE qAKISI TUTUCULU TORNA AYNASI TUTUCU

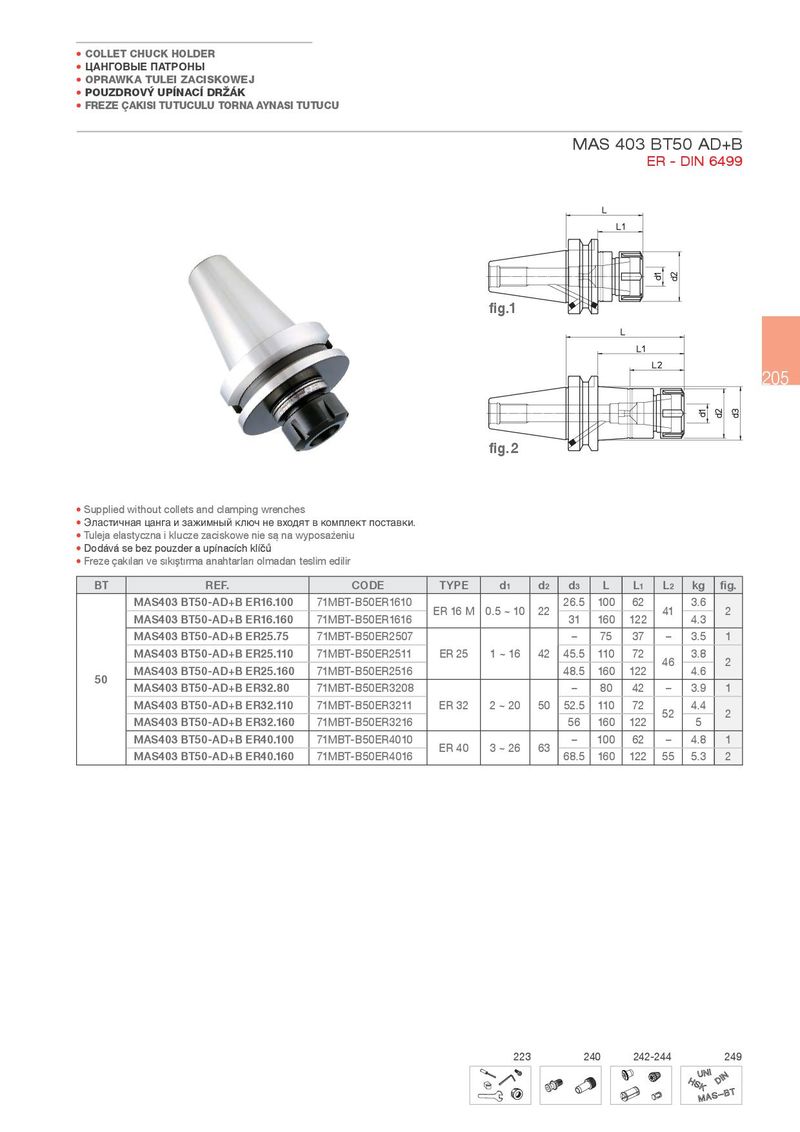

MAS 403 BT50 AD+B
ER - DIN 6499
fig.1
205
fig.2
- Supplied without collets and clamping wrenches
- Эластичная цанга и зажимный ключ не входят в комплект поставки.
•7XOHMDHODVW\F]QDLNOXF]H]DFLVNRZHQLHVĝQDZ\SRVDƅHQLX •'RG¾Y¾VHEH]SRX]GHUDXSÊQDFÊFKNOÊĦƀ •)UH]HÄDNIJODUIJYHVIJNIJūWIJUPDDQDKWDUODUIJROPDGDQWHVOLPHGLOLU
| BT REF. | CODE | TYPE | d1 | d2 | d3 | L | L1 | L2 | kg | fig. |
| MAS403 BT50-AD+B ER16.100 | 71MBT-B50ER1610 | ER 16 M | 05 ~ 10 | 22 | 26.5 | 100 | 62 | 41 | 3.6 | 2 |
| MAS403 BT50-AD+B ER16.160 | 71MBT-B50ER1616 | . | 31 | 160 | 122 | 4.3 | ||||
| MAS403 BT50-AD+B ER25.75 | 71MBT-B50ER2507 | � | 75 | 37 | � | 3.5 | 1 | |||
| MAS403 BT50-AD+B ER25.110 | 71MBT-B50ER2511 | ER 25 | 1 ~ 16 | 42 | 45.5 | 110 | 72 | 46 | 3.8 | 2 |
| 50 MAS403 BT50-AD+B ER25.160 | 71MBT-B50ER2516 | 48.5 | 160 | 122 | 4.6 | |||||
| MAS403 BT50-AD+B ER32.80 | 71MBT-B50ER3208 | � | 80 | 42 | � | 3.9 | 1 | |||
| MAS403 BT50-AD+B ER32.110 | 71MBT-B50ER3211 | ER 32 | 2 ~ 20 | 50 | 52.5 | 110 | 72 | 52 | 4.4 | 2 |
| MAS403 BT50-AD+B ER32.160 | 71MBT-B50ER3216 | 56 | 160 | 122 | 5 | |||||
| MAS403 BT50-AD+B ER40.100 | 71MBT-B50ER4010 | ER 40 | 3 26 | 63 | � | 100 | 62 | � | 4.8 | 1 |
| MAS403 BT50-AD+B ER40.160 | 71MBT-B50ER4016 | ~ | 68.5 | 160 | 122 | 55 | 5.3 | 2 |
